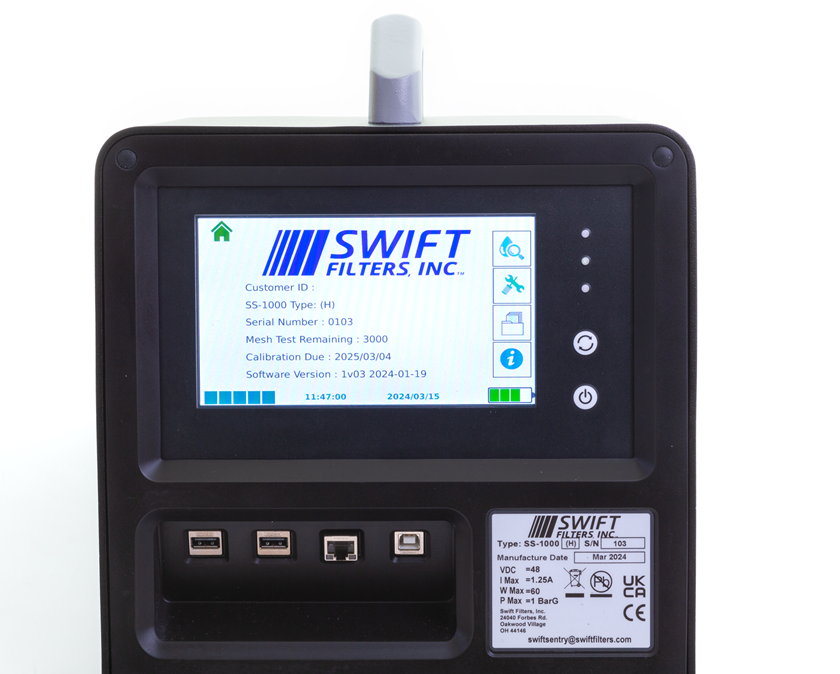

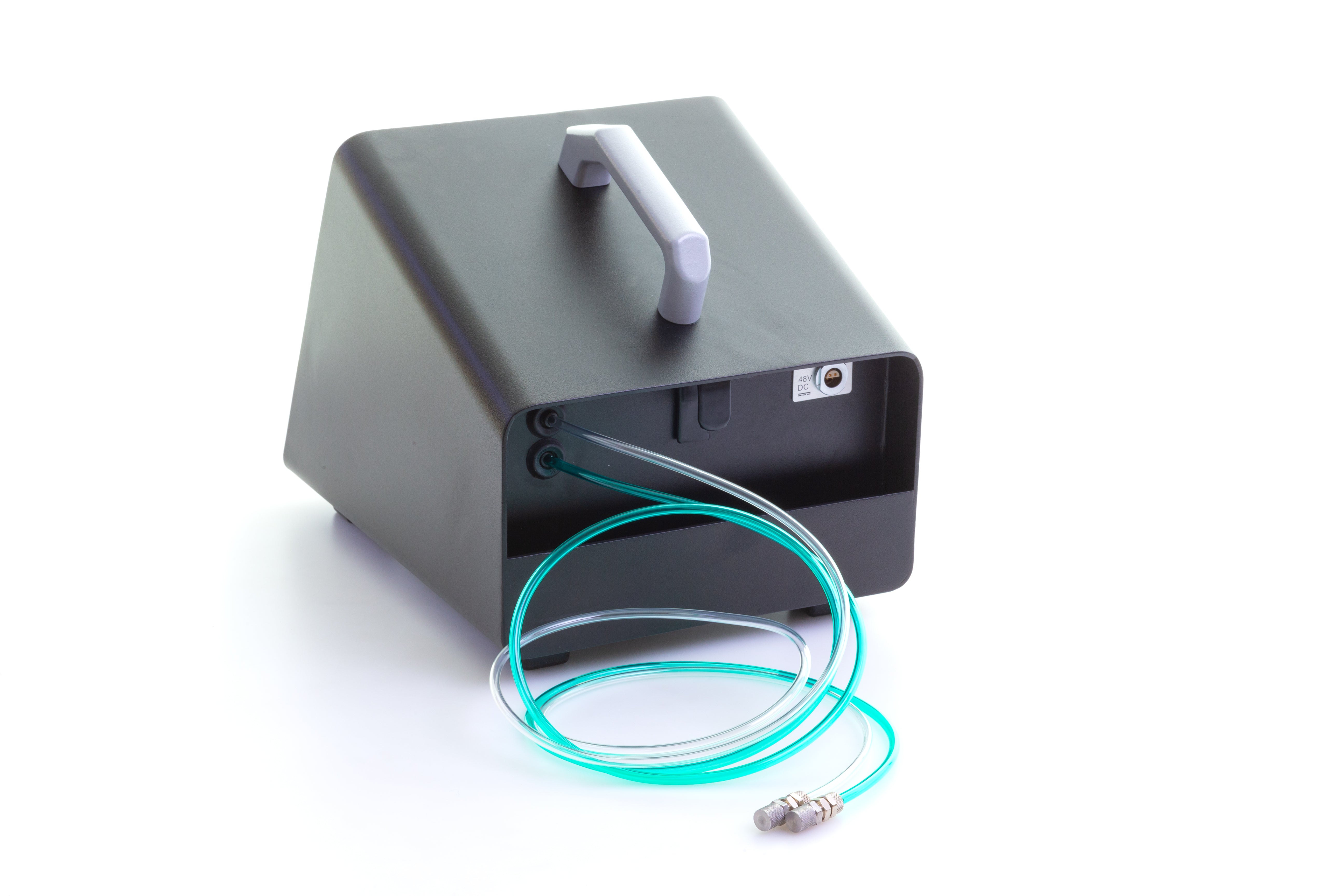

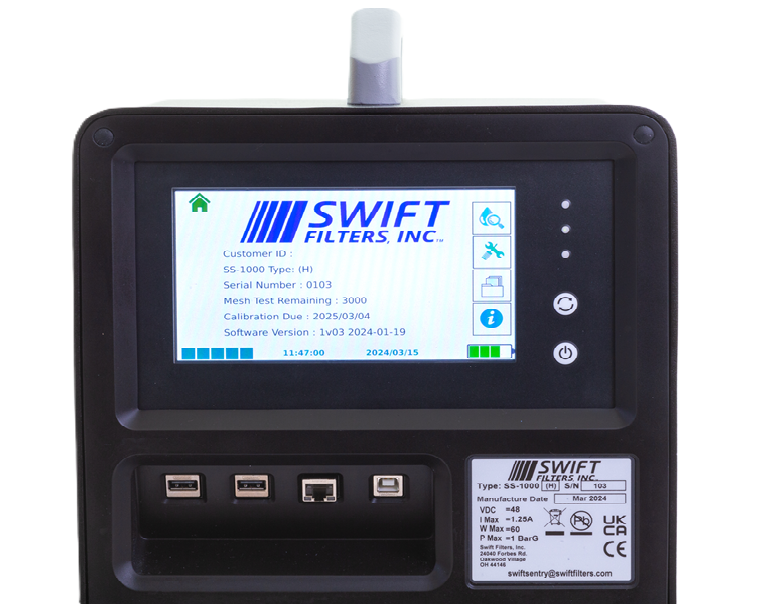

The SwiftSentry 1000 Fluid Cleanliness Monitor is a portable diagnostic fluid cleanliness monitor designed specifically for dark and low viscosity fluids.
Swift Filters offers a fluid cleanliness monitor using proven mesh blockage technology designed to provide more accurate and reliable fluid cleanliness analysis over light extinction monitors for non-homogenous fluids including low viscosity and dark fluids.

Catch Fluid Contaminants Before System Damage Starts
Particle contamination is the root cause of 82 percent of wear-related failures.*

In most cases, the amount of particle contamination in the oil is one of the largest key factors that determine how long components of a lubricated system will last.
(*A multi-industry study published by the National Research Council of Canada)

Even new hydraulic fluid contains some level of particle contamination, which can lead to equipment damage and fluid degradation.

Delivers Rapid Results Compatible with ISO Cleanliness Codes in Under 5 Minutes
The SwftSentry 1000 fluid monitor provides results within ISO fluid cleanliness code parameters required for cleanliness certification including:

• ISO4406
  3-part ISO 4406 cleanliness code results (4µm; 6µm; 14µm)
• SAE AS 4059 table 1 (NAS 1638)
• SAE AS 4059 table 2
• GOST 17216-2001

Remarkably Reliable Results in Many Conditions with Just About Any Type of Fluid
The SwiftSentry 1000 is able to accurately measure concentrations of smaller contamination particles (<10 µm) in a wide array of fluids including:

• Wet Fluids
• Aerated Fluids
• Dark Fluids
• Multi-phase hydraulic fluids
• Water-based glycols
• Diesel fuels
• Cutting-tool fluids
• Water-based washing fluids

.

Monitor:
SS-1000
An internal low power source is provided for battery charging and operation on AC power if preferred.

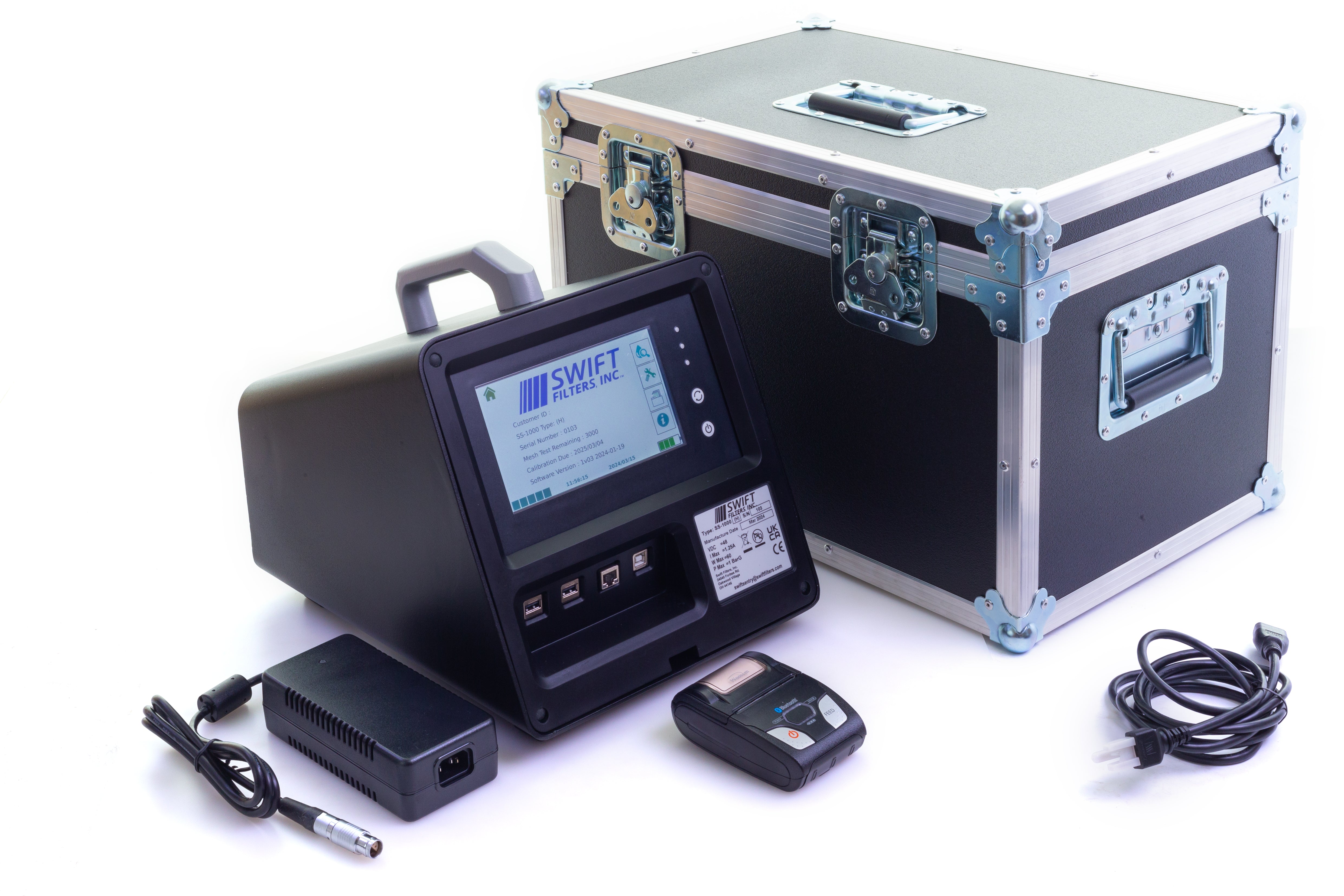

The SwiftSentry 1000 is supplied with a robust transit case.

With Humidity Sensor:
SS-1000-H

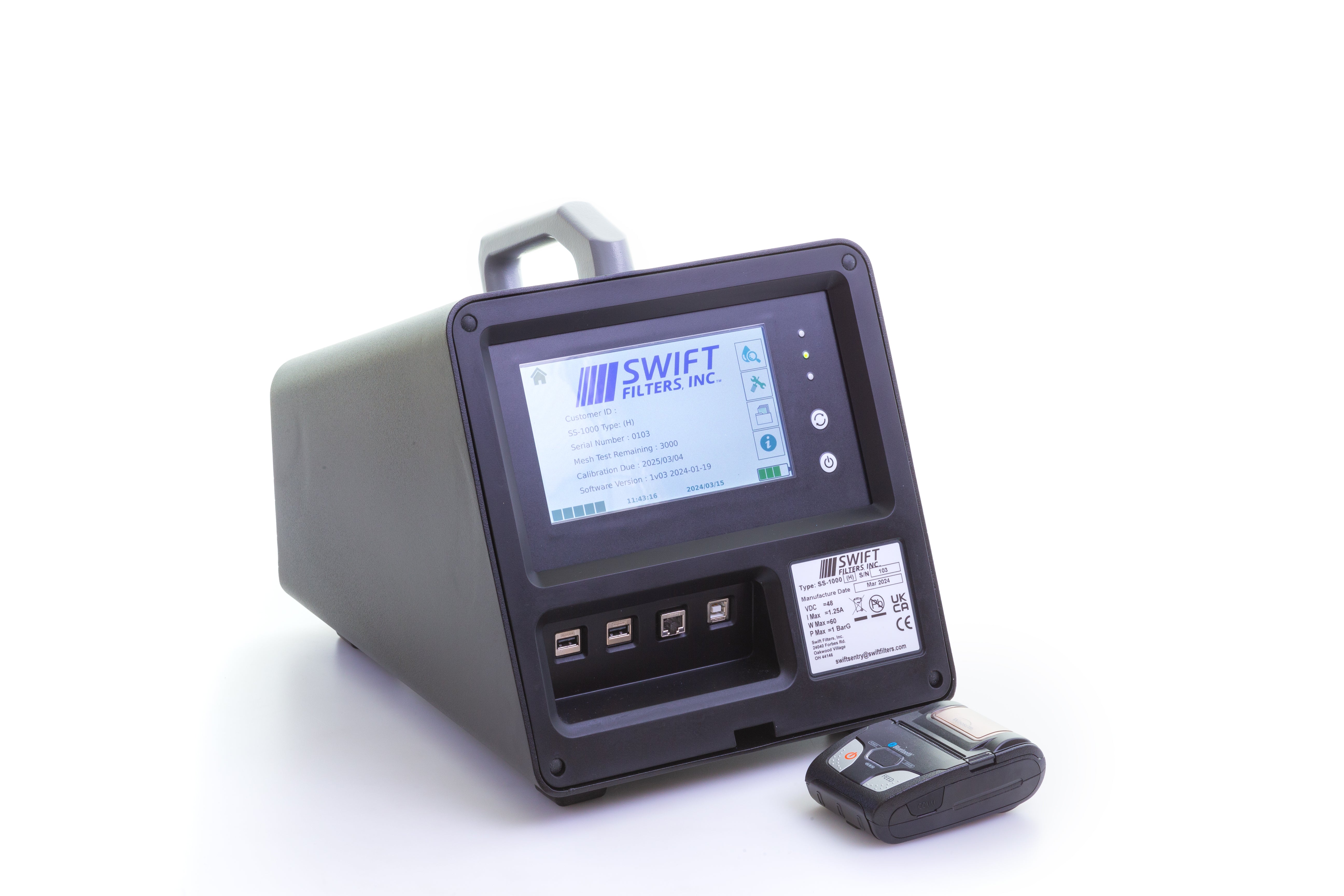

Optional Pinter Kit:
SS-1000-Printer
