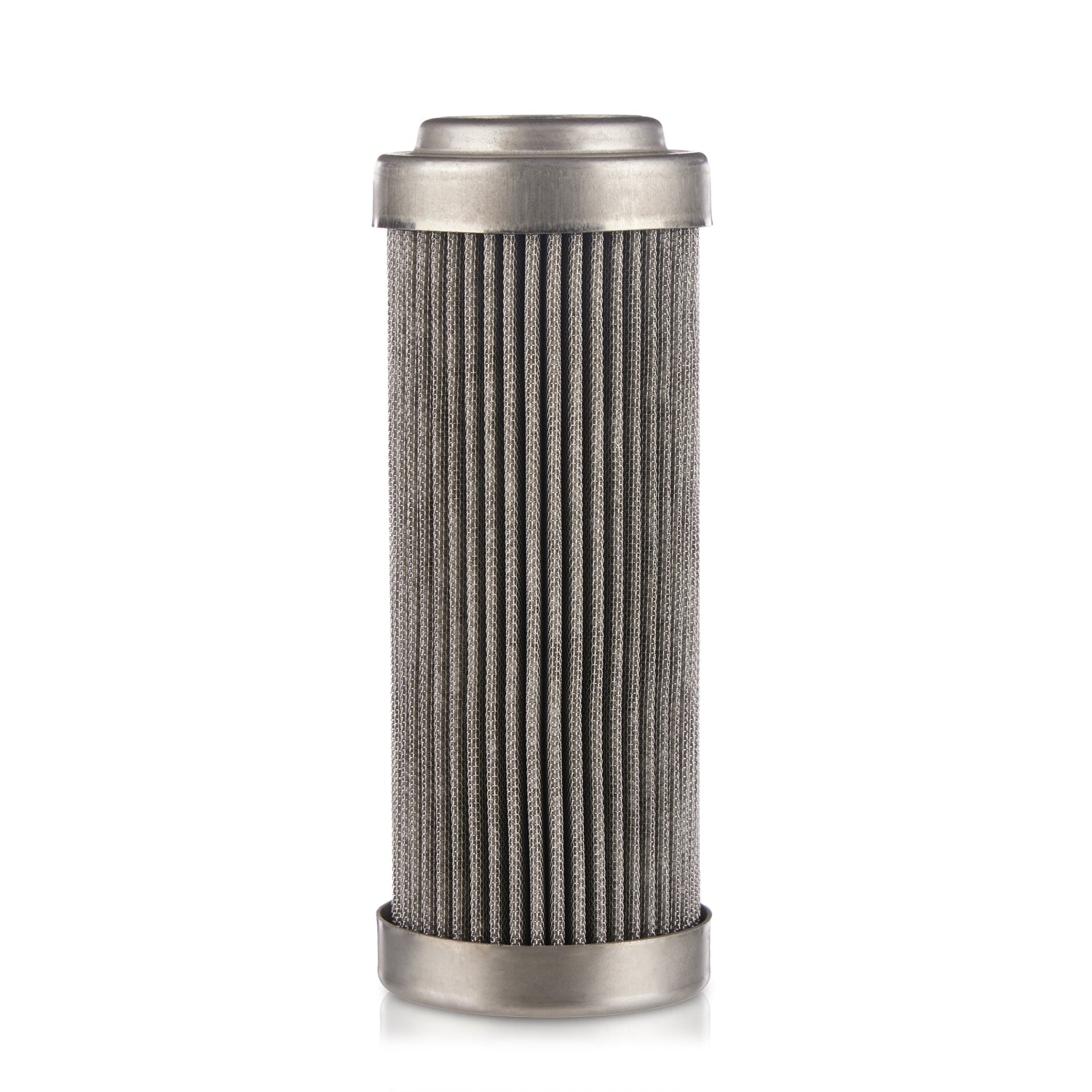

Cartridge Filter Element SWIFTDISCHARGE™ SF9020-4-12UM-SDM 12 Micron Anti-Static Microglass Media

Swift Filters SF9020-4-12UM-SDM is a highly durable 12 micron cartridge filter element ideal for use with many challenging fuel and petroleum-based fluid filtration applications.

Our anti-static filter elements feature high performance SWIFTGLASS™ media combined with a SWIFTDISCHARGE™ antistatic layer that eliminates discharge sparking while ensuring a very low charge across filter media over long periods of time.

The Swift Filters Microglass Anti-Static Replacement Filter Element Advantage

• Dissipates triboelectric charges generated from petrochemical flow through synthetic media
• Superior strength and heat tolerance
• Exceptional chemical resistance
• Allows lower pressure drop which reduces ESD and increases fluid life


SF9020-4-12UM-SDM Filter Element Specifications

• MICRON RATING: A particle retention size of 12 micron will ensure all contaminants are removed, making sure the filter performs at its highest efficiency
• MEDIA TYPE: SWIFTDISCHARGE™ anti-static microglass
• SEAL MATERIAL: Buna-N (Nitrile)
• COLLAPSE: Can withstand pressure up to 150 PSI
• DIMENSIONS: Inner Diameter 1.02 in., Outer Diameter 1.75 in., Overall Length 4.47 in.
• TEMPERATURE RATING: -40°F  to +250°F

Made in the USA, Swift Filters specializes in the design and manufacture of high-quality replacement filter elements and custom filter elements for a wide variety of industries.
