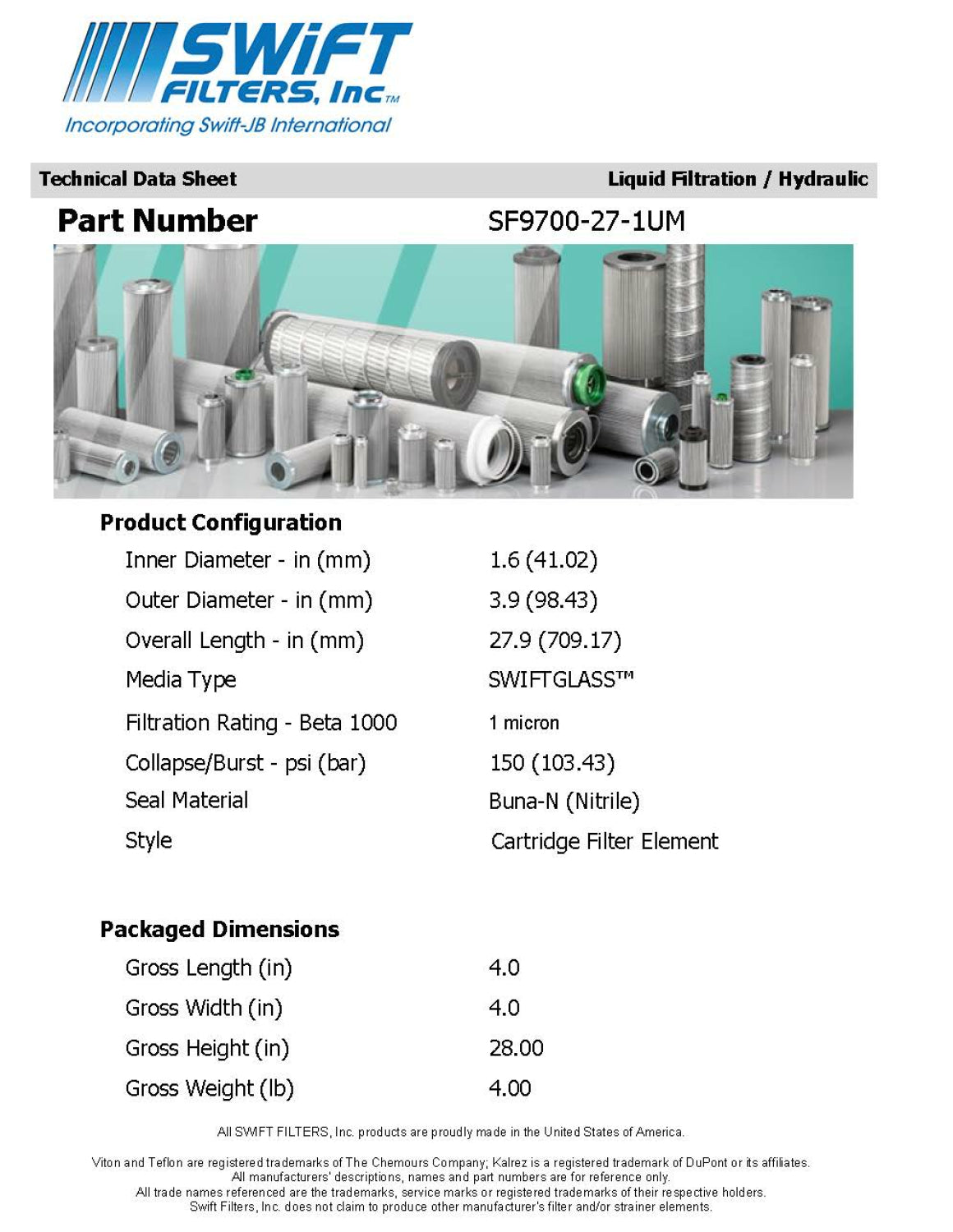

Cartridge Filter Element SF9700-27-1UM 1 Micron Microglass

The SF9700-27-1UM is a highly durable 1 micron microglass cartridge filter element ideal for use with fuels and petroleum-based fluids hydraulic filtration applications.

All our microglass filter elements feature high performance SWIFTGLASS® microglass filter media comprised of high strength dual-phase synthetic fibers bonded with a stable resin set into a pleated multilayer construction, making it one of the most efficient and cost-effective hydraulic cartridge filter elements available in the market today.

The Swift Filters Microglass Replacement Filter Element Advantage
• An economical true equivalent in fit form and function
• Ideal for critical hydraulic filter applications
• Maximum performance wedge wire filter elements that typically exceeds OEM interchange
• 1 micron capacity for increased dirt holding and particle capture

Unparalleled Microglass Filter Element Performance
• Offers the highest level of hydraulic filtration
• Beta Ratio 1000 ensures 99.9% contamination control across flow surges and temperature changes offering longer system life and less downtime
• Easier servicing-no tools needed

• MICRON RATING: A particle retention size of 1 micron will ensure all contaminants are removed, making sure the filter performs at its highest efficiency
• MEDIA TYPE: SWIFTGLASS
• SEAL MATERIAL: Buna-N (Nitrile)
• COLLAPSE: Can withstand pressure up to 150 PSI
• DIMENSIONS: Inner Diameter 1.615 in., Outer Diameter 3.875 in., Overall Length 27.920 in.
• TEMPERATURE RATING: 40°F to +250°F
