- Sku: FJW-5-325M-WW-E
- Type: Cartridge
Wedge Wire Hydraulic Filter Element SWIFTWEDGE™ FJW-5-325M-WW-E 44 Micron with Core
Made in the USA
ISO 9001:2015
Manufacturer of High Performance Replacement Filter Elements
For over 200 domestic and foreign manufacturers
Swift Filters FJW-5-325M-WW-E is a highly durable 44 micron wedge wire filter element with a core ideal for many challenging fuel and petroleum-based hydraulic filtration applications.
Our wedge wire filter elements feature SWIFTWEDGE™ cleanable wedge wire filter media that provides high strength and high pressure properties.
The Swift Filter Wedge Wire Replacement Filter Element Advantage
• An economical true equivalent in fit form and function
• Ideal for critical hydraulic filter applications
• Maximum performance wedge wire filter elements that typically exceeds OEM interchange
• 44 micron capacity for increased dirt holding and particle capture efficiency
• Offers the highest level of hydraulic filtration
• Beta Ratio 1000 ensures 99.9% contamination control across flow surges and temperature changes offering longer system life and less downtime
The Swift Filter Wedge Wire Advantage
• Optimum structural strength for heavy loads
• Minimal plugging and blinding
• High pressure/pulsating pressure capability
• Corrosive application suitability
• High thermal resistance
• Long-life — almost endless cleanability
• Sterile application / food industry suitability
• Low pressure drop
• High flow rate
FJW-5-325M-WW-E Wedge Wire Filter Element Specifications
- MICRON RATING: 44 micron
- MEDIA TYPE: SWIFTWEDGE™ wedge wire
- COLLAPSE: Can withstand pressure up to 300 PSI
- DIMENSIONS: Inner Diameter 1.50 in., Outer Diameter 2.57 in., Overall Length 9.733 in.
- TEMPERATURE RANGE: -40°F to +250°F
Made in the USA, Swift Filters specializes in the design and manufacture of high-quality replacement filter elements and custom filter elements for a wide variety of industries.

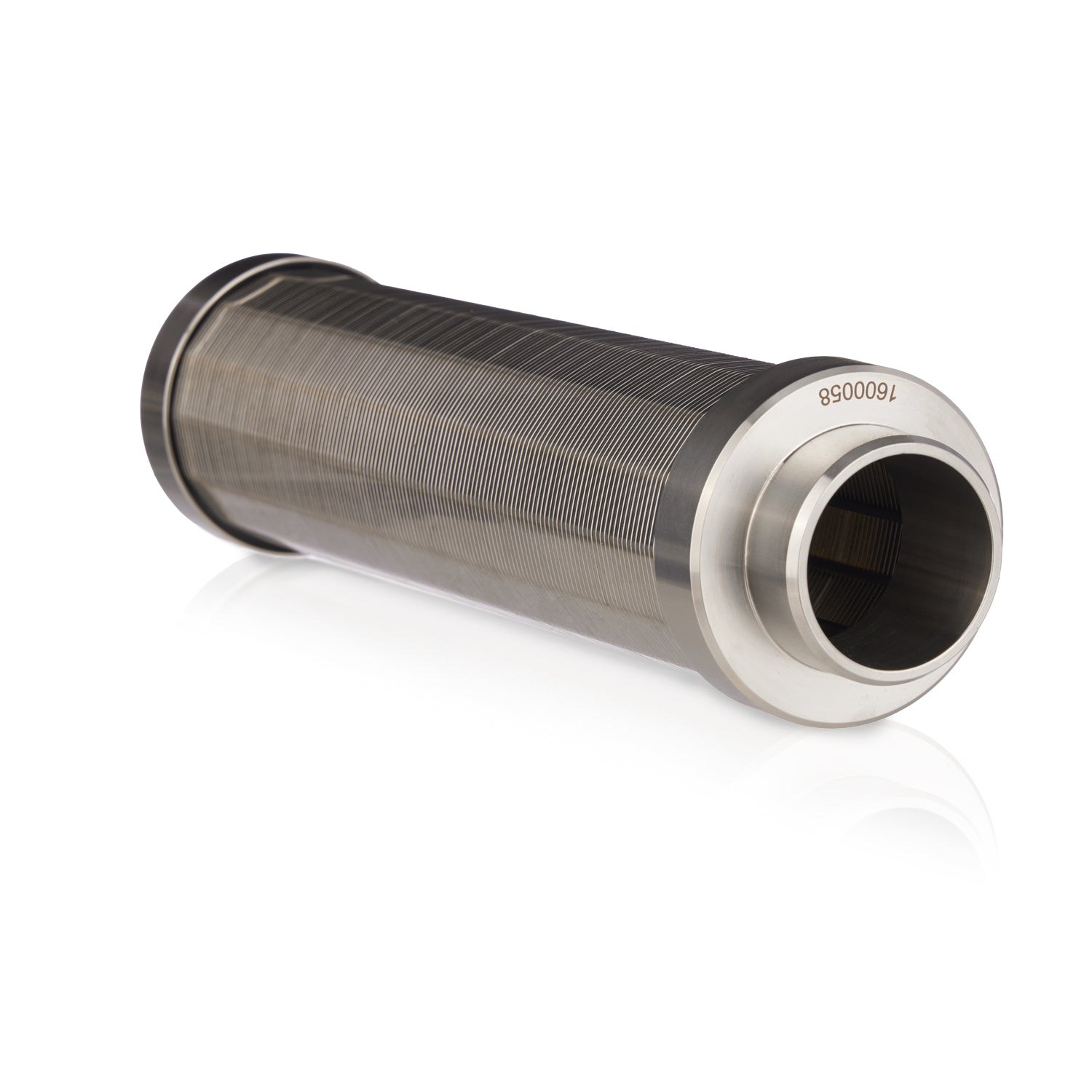

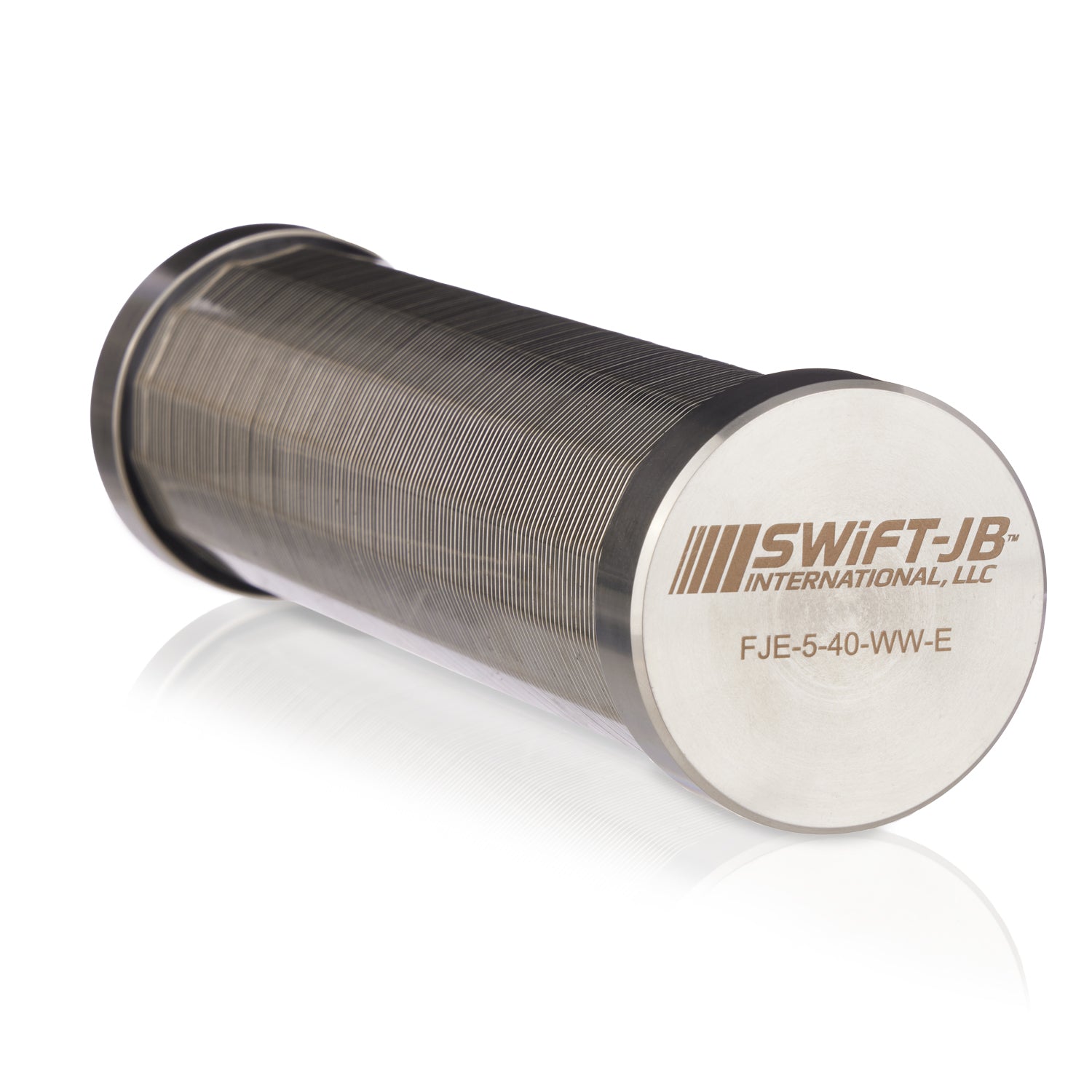

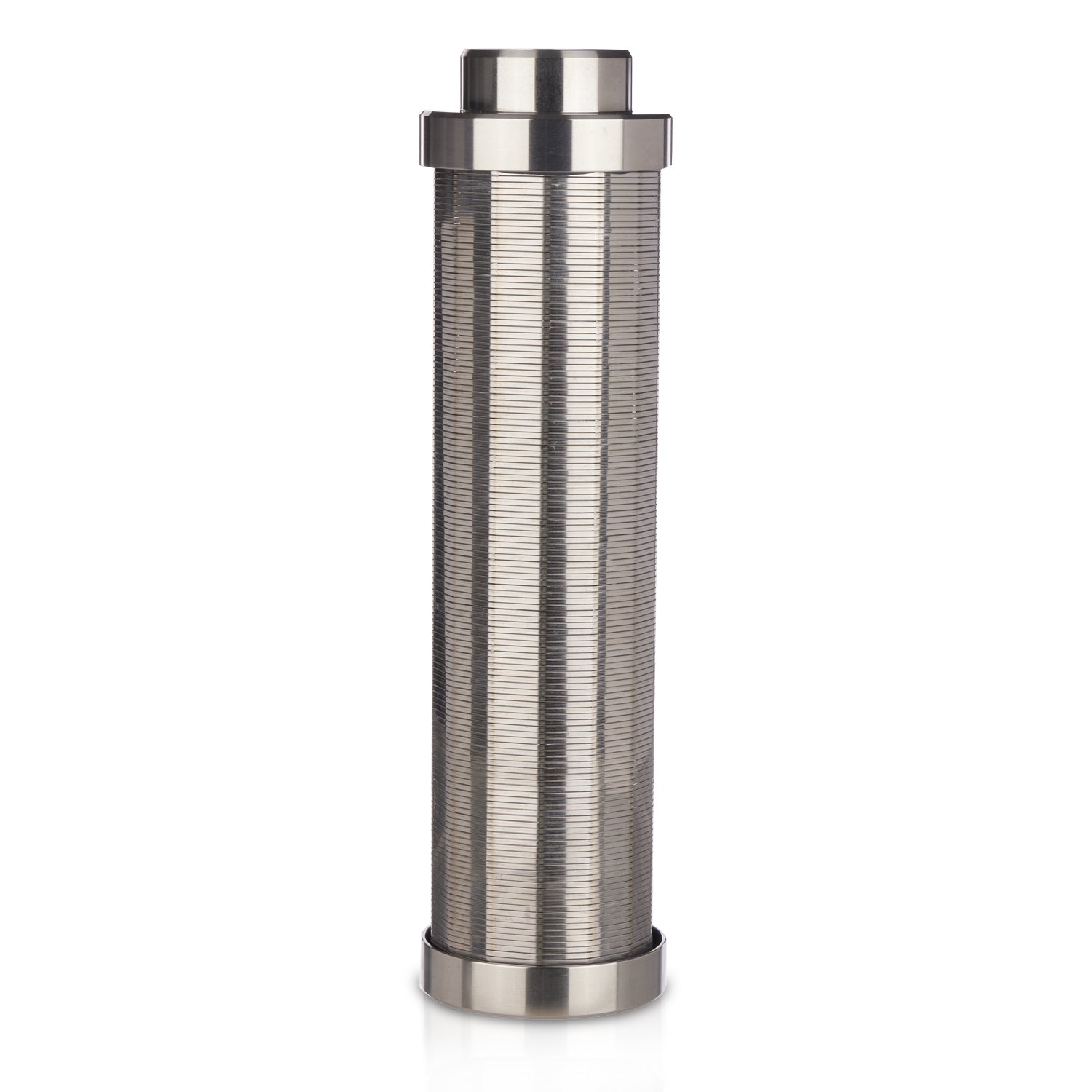

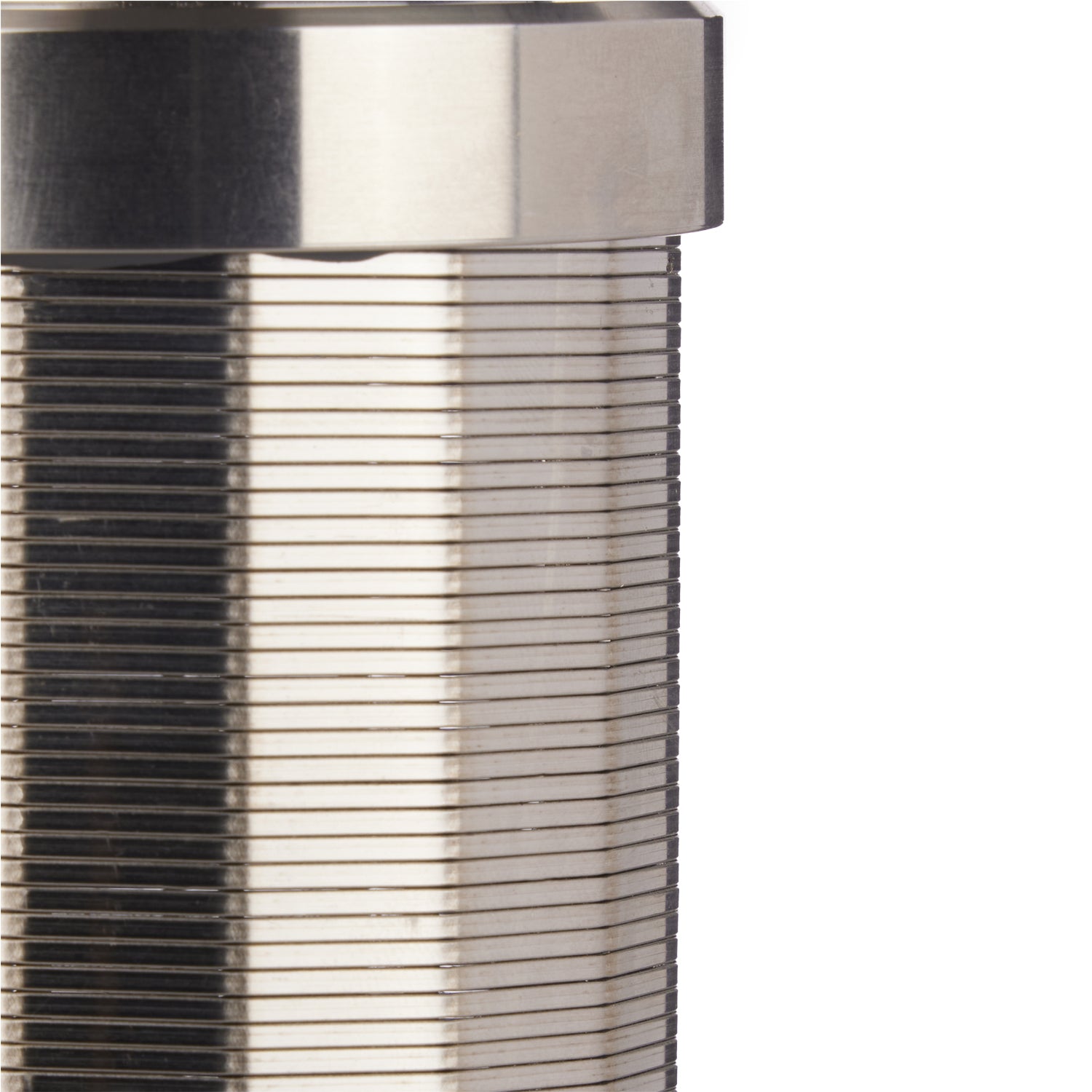

![Wedge Wire Hydraulic Filter Element SWIFTWEDGE™ FJW-5-325M-WW-E 44 Micron with Core](http://www.swiftfilters.com/cdn/shop/products/df385bf5011c874c7598507a76186ae4eba9bddf-1500-1500_m.jpg?v=1681400149&width=1445)
![Wedge Wire Hydraulic Filter Element SWIFTWEDGE™ FJW-5-325M-WW-E 44 Micron with Core](http://www.swiftfilters.com/cdn/shop/products/ada40468b4938c8e59fa96d5442b144d6f1270fa-1500-1500_m.jpg?v=1681400151&width=1445)
![Wedge Wire Hydraulic Filter Element SWIFTWEDGE™ FJW-5-325M-WW-E 44 Micron with Core](http://www.swiftfilters.com/cdn/shop/products/cf6054fc1240316ede7aea08111eabd6b381a8cf-1500-1500_m.jpg?v=1681400152&width=1445)
![Wedge Wire Hydraulic Filter Element SWIFTWEDGE™ FJW-5-325M-WW-E 44 Micron with Core](http://www.swiftfilters.com/cdn/shop/products/9f1015bc845e0f6931f57adb66a677c48e32c517-1500-1500_m.jpg?v=1681400154&width=1445)
Wedge Wire Hydraulic Filter Element SWIFTWEDGE™ FJW-5-325M-WW-E 44 Micron with Core
