The SwiftSentry 1000 Fluid Cleanliness Monitor is a portable diagnostic fluid cleanliness monitor designed specifically for dark and low viscosity fluids.
Swift Filters offers a fluid cleanliness monitor using proven mesh blockage technology designed to provide more accurate and reliable fluid cleanliness analysis over light extinction monitors for non-homogenous fluids including low viscosity and dark fluids.
Catch Fluid Contaminants Before System Damage Starts
Particle contamination is the root cause of 82 percent of wear-related failures.*
In most cases, the amount of particle contamination in the oil is one of the largest key factors that determine how long components of a lubricated system will last.
(*A multi-industry study published by the National Research Council of Canada)

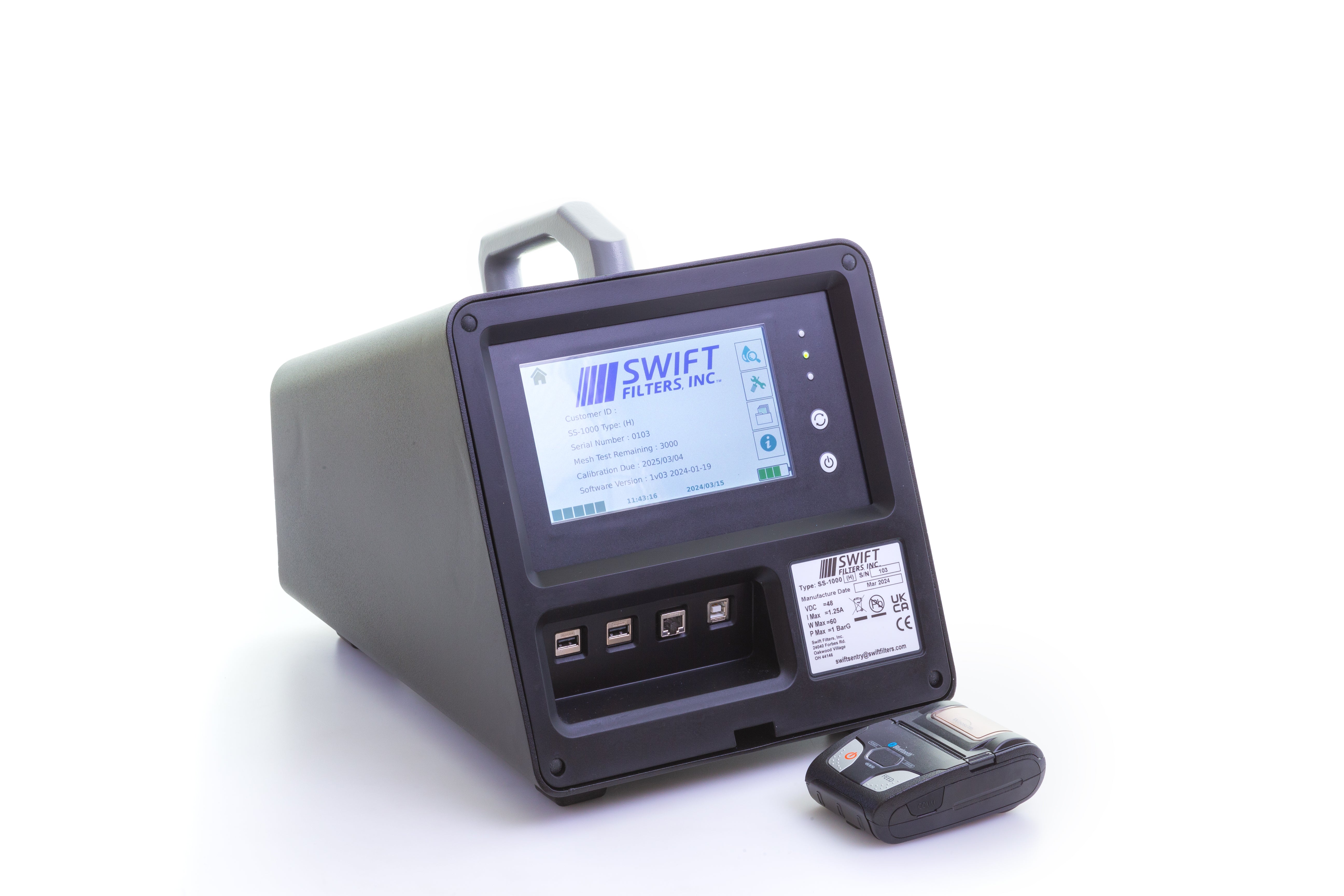

![](http://www.swiftfilters.com/cdn/shop/files/FCM-5.jpg?v=1711037492&width=5184)
Even new hydraulic fluid contains some level of particle contamination, which can lead to equipment damage and fluid degradation.
Delivers Rapid Results Compatible with ISO Cleanliness Codes in Under 5 Minutes
The SwiftSentry 1000 fluid monitor provides results within ISO fluid cleanliness code parameters required for cleanliness certification including:
- ISO4406
3-part ISO 4406 cleanliness code results (4µm; 6µm; 14µm) - SAE AS 4059 table 1 (NAS 1638)
- SAE AS 4059 table 2
- GOST 17216-2001

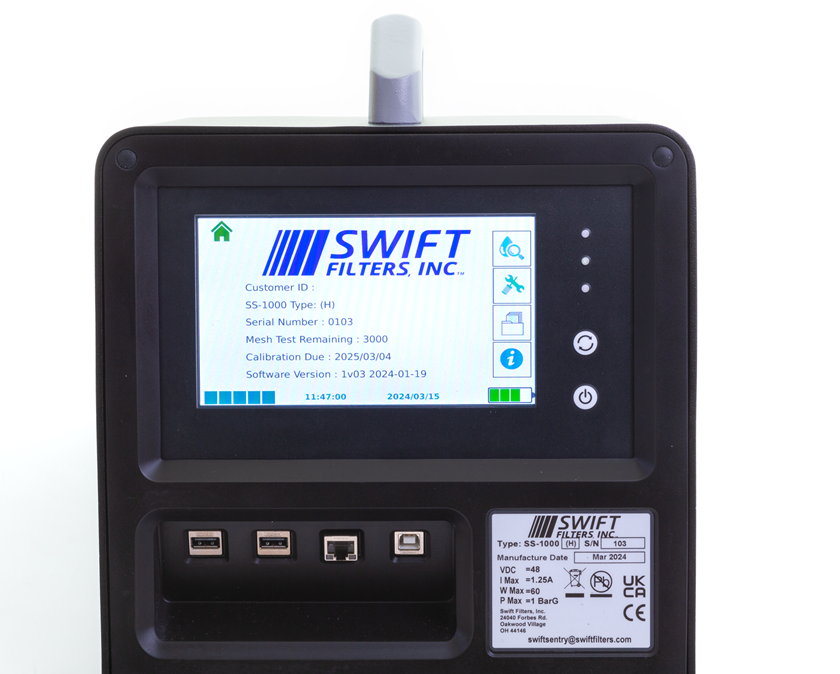

![](http://www.swiftfilters.com/cdn/shop/files/SwiftSentry_1000_Fluid_Monitor_Display.png?v=1712354332&width=840)
Remarkably Reliable Results in Many Conditions with Just About Any Type of Fluid
The SwiftSentry 1000 is able to accurately measure concentrations of smaller contamination particles (<10 µm) in a wide array of fluids including:
- Wet Fluids
- Aerated Fluids
- Dark Fluids
- Multi-phase hydraulic fluids
- Water-based glycols
- Diesel fuels
- Cutting-tool fluids
- Water-based washing fluids

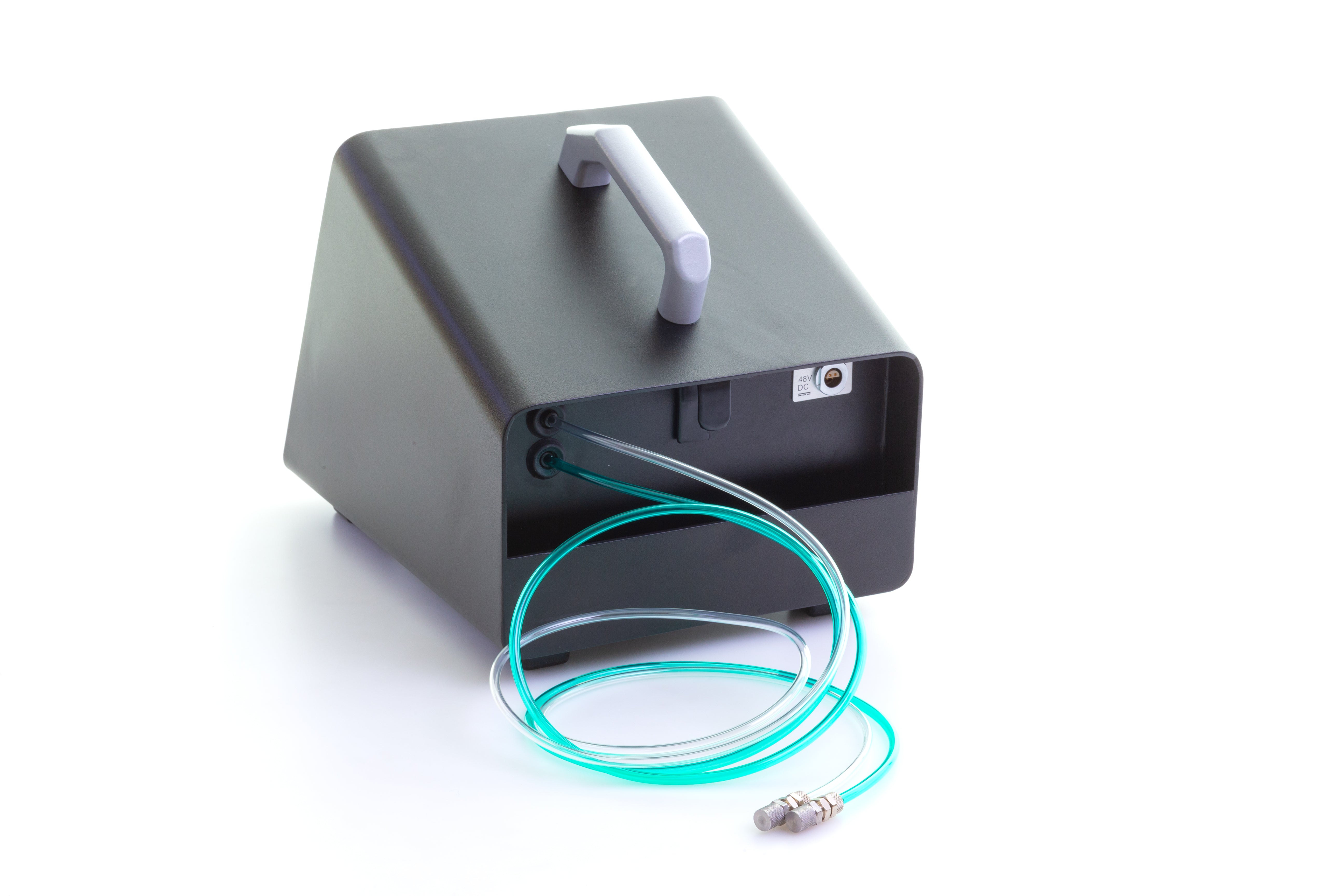

![SwiftSentry 1000 Fluid Cleanliness Monitor-Input and Output Lines](http://www.swiftfilters.com/cdn/shop/files/SwiftSentry_1000_Fluid_Cleanliness_Monitor-Input_and_Output_Lines.jpg?v=1712266463&width=5184)
.

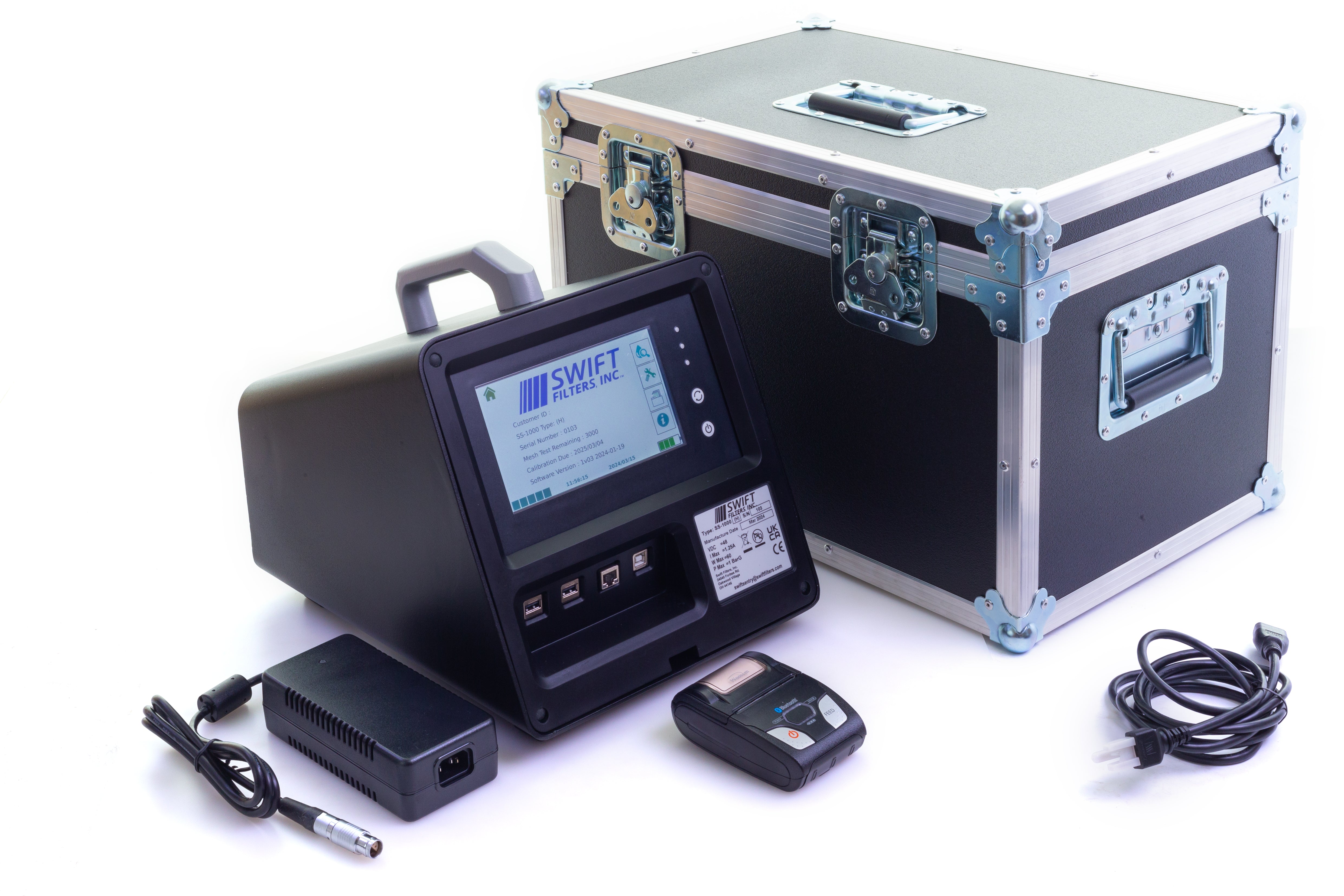

![Fluid Cleanliness Monitor](http://www.swiftfilters.com/cdn/shop/files/SwiftSentry_1000_Fluid_Cleanliness_Monitoring_Kit.jpg?v=1712255189&width=4963)
NORTH AMERICA SALES ONLY
Monitor:
SS-1000
An internal low power source is provided for battery charging and operation on AC power if preferred.
The SwiftSentry 1000 is supplied with a robust transit case.
With Humidity Sensor:
SS-1000-H
Optional Pinter Kit:
SS-1000-Printer
