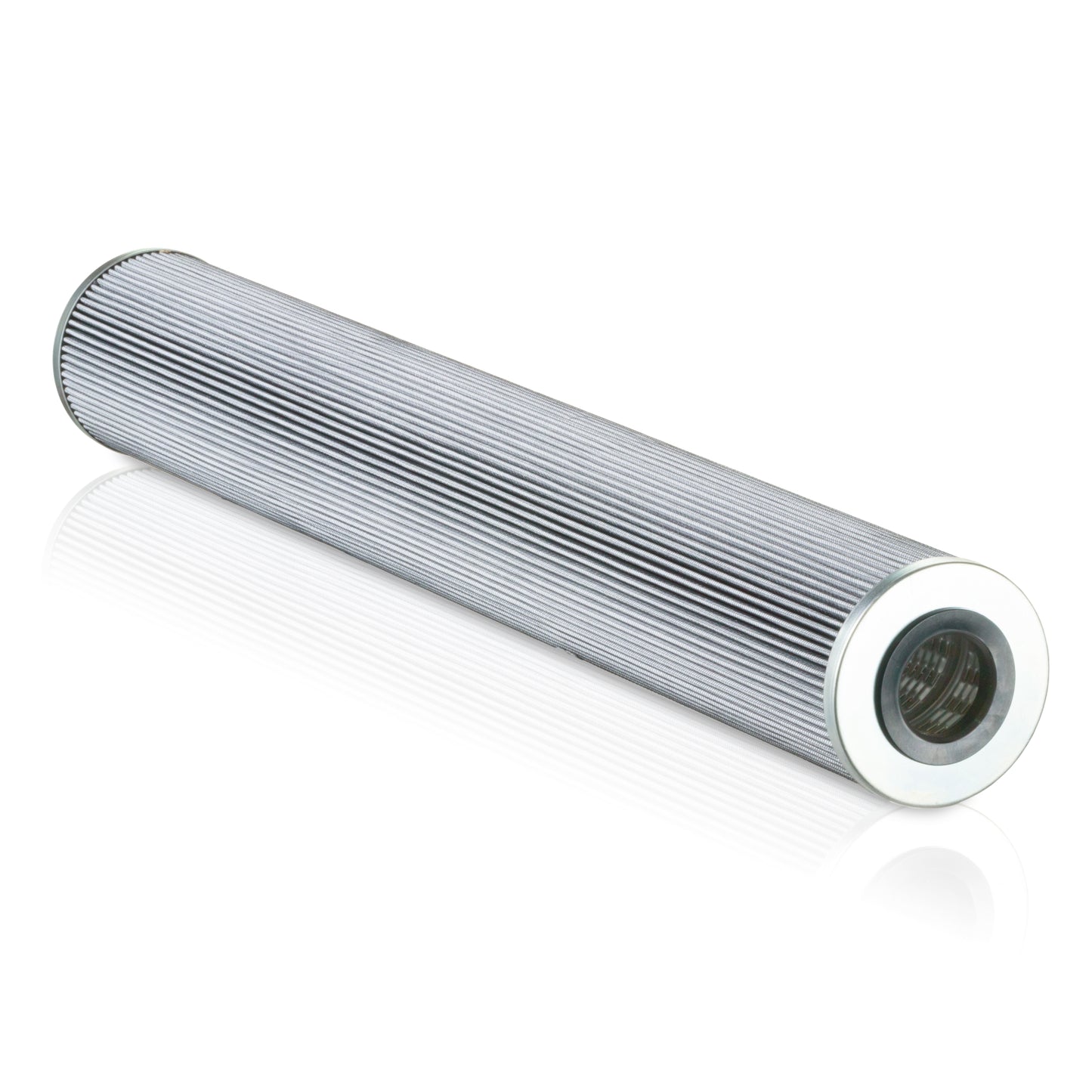

Cartridge Filter Element SF9700-27-1UMV 1 Micron Microglass

Swift Filters SF9700-27-1UMV is a highly durable 1 micron microglass cartridge filter dlement ideal for use with fuels and petroleum-based fluid hydraulic filtration applications.

All our microglass filter elements feature high performance SWIFTGLASS® filter media comprised of high strength dual-phase synthetic fibers bonded with a stable resin set into a pleated multilayer construction, making it one of the most efficient and cost-effective hydraulic cartridge filter elements available in the market today.

The Swift Filters Microglass Replacement Filter Element Advantage
• An economical true equivalent in fit form and function
• Ideal for critical hydraulic filter applications
• Maximum performance microglass filter elements that typically exceeds OEM interchange
•1 micron capacity for Increased dirt holding and particle capture efficiency

Unparalleled Microglass Filter Element Performance
• Offers the highest level of hydraulic filtration
• Beta Ratio 1000 ensures 99.9% contamination control across flow surges and
   temperature changes offering longer system life and less downtime
• Easier servicing- no tools needed

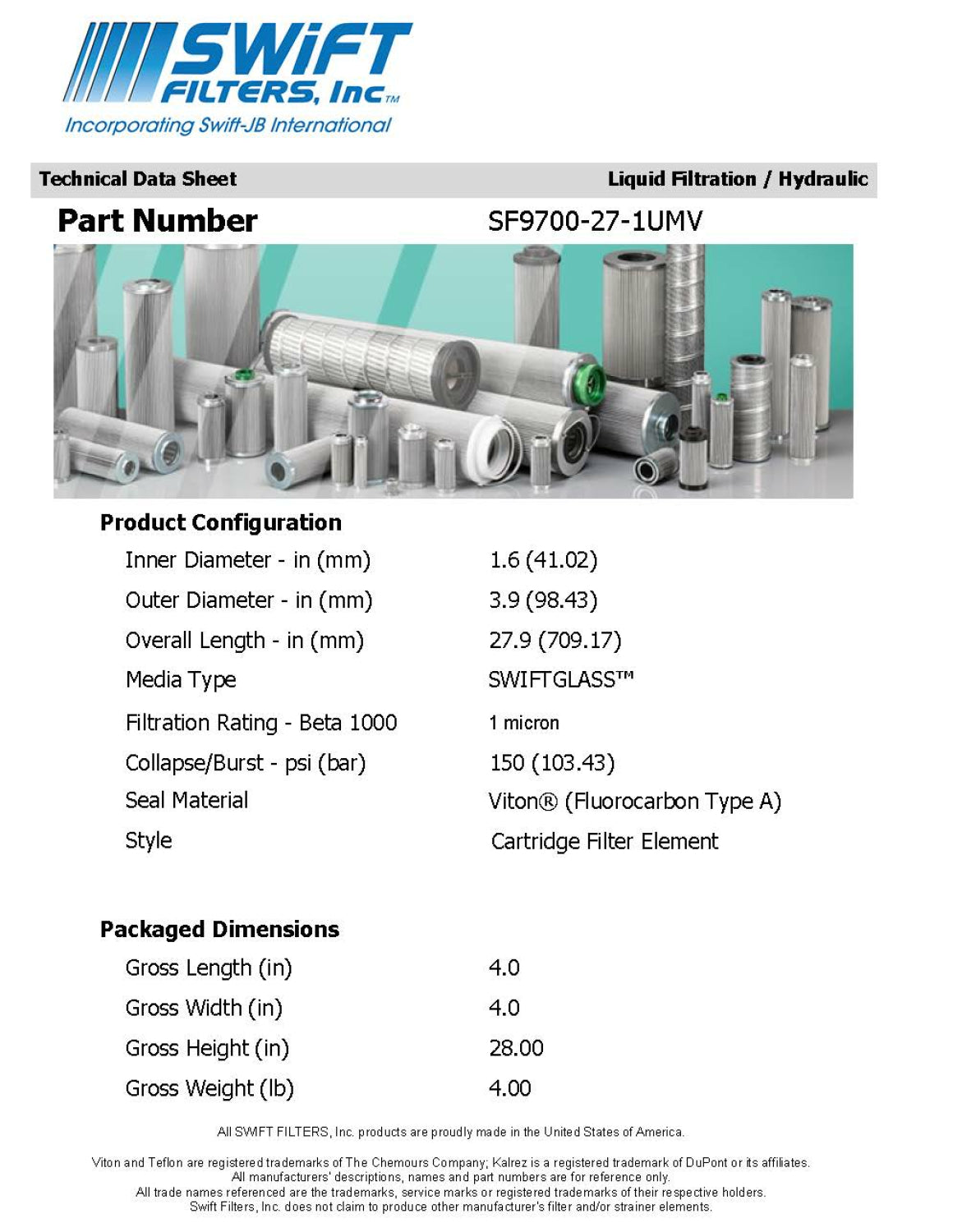

SF9700-27-1UMV Filter Element Specifications

• MICRON RATING: 1 micron
• SEAL MATERIAL: Viton (Fluorocarbon Type A)
• COLLAPSE: Can withstand pressure up to 150 PSI

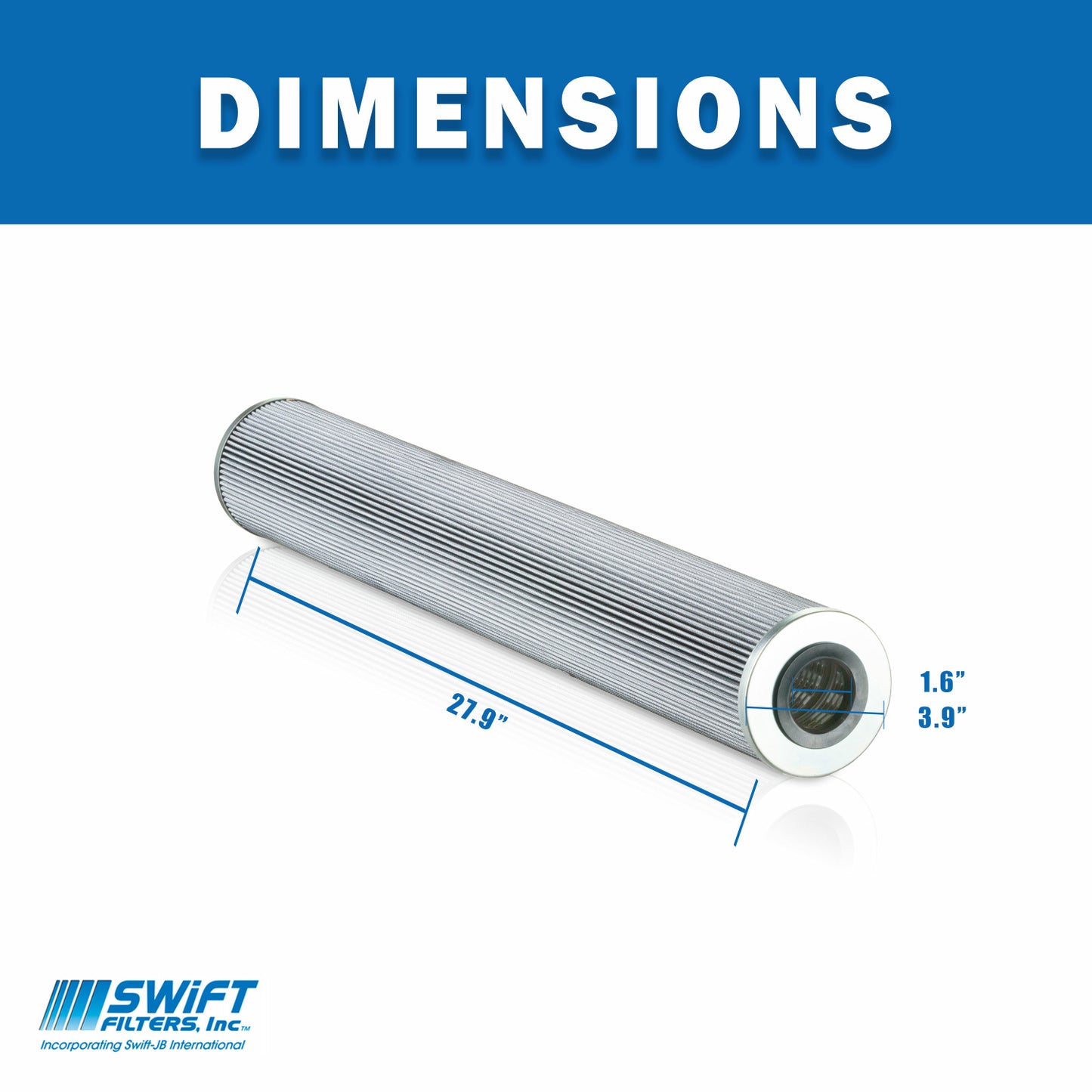

• DIMENSIONS: Inner Diameter 1.615 in., Outer Diameter 3.875 in., Overall Length 27.920 in.
• TEMPERATURE: -15°F to +400°F
