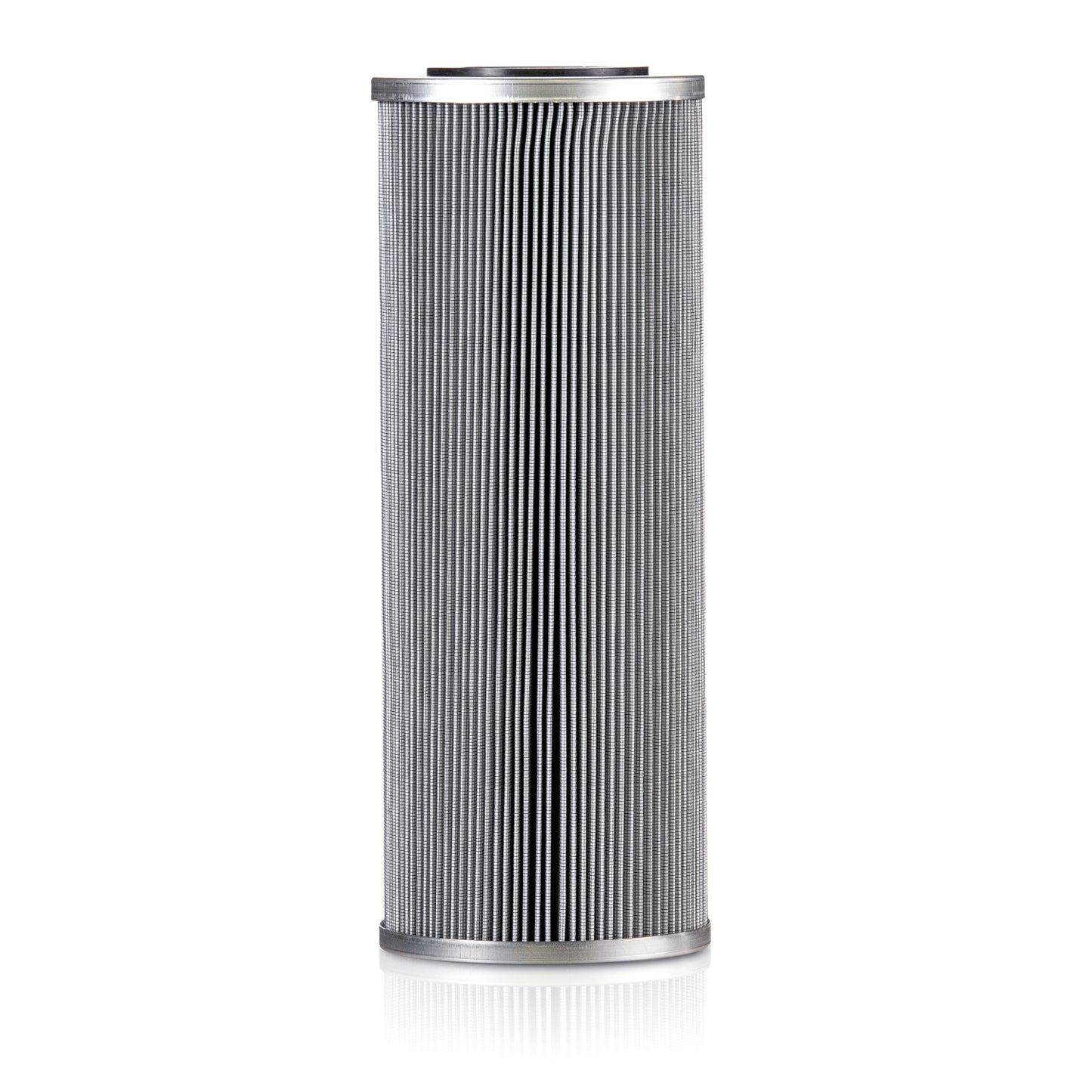

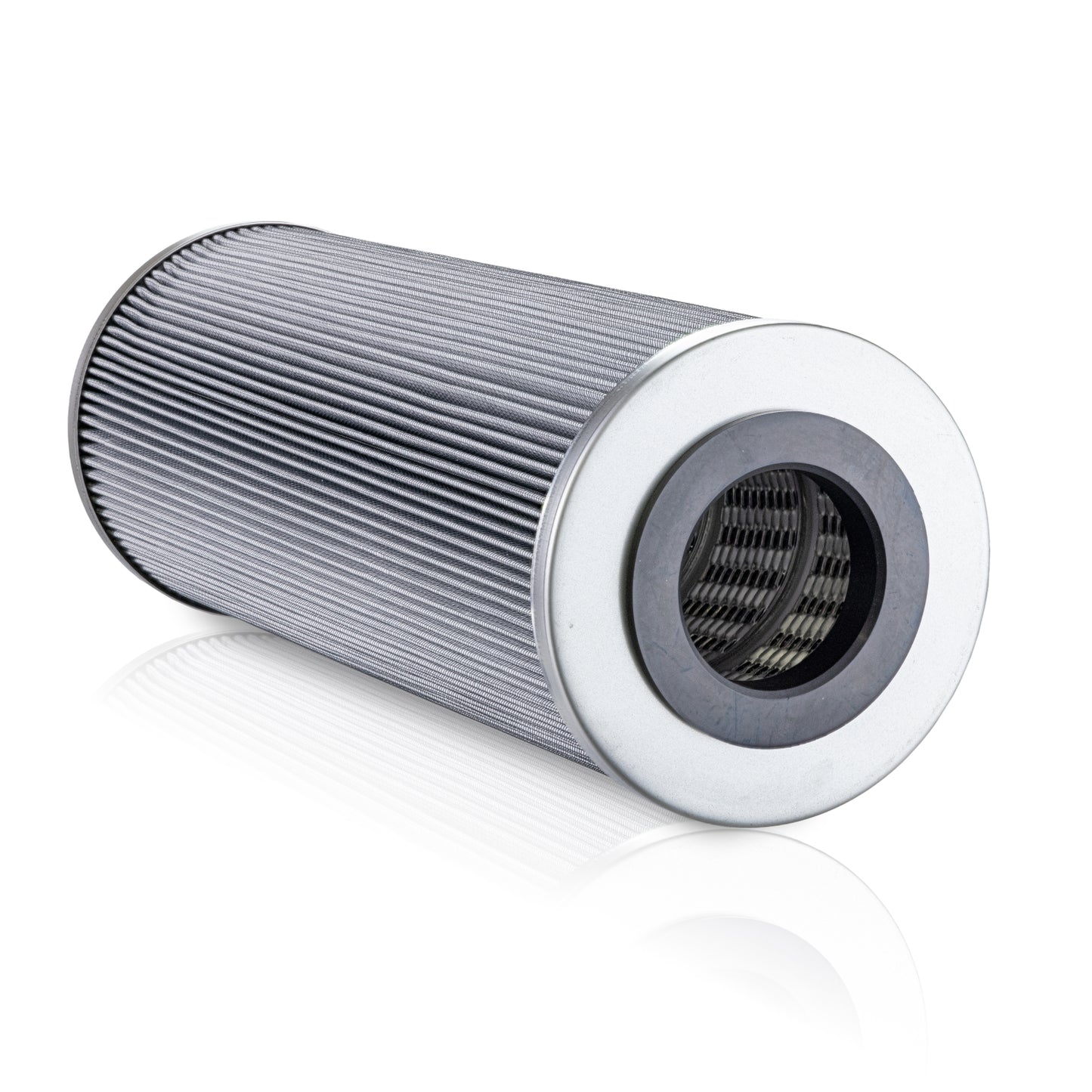

Cartridge Filter Element SF0101-16-6UM 6 Micron Microglass

The SF0101-16-6UM is a highly durable 6 micron microglass cartridge filter element for use with fuels and petroleum-based fluid hydraulic filtration applications.

All our microglass filter elements feature high performance SWIFTGLASS® microglass filter media comprised of high strength dual-phase synthetic fibers bonded with a stable resin set into a pleated multilayer construction, making it one of the most efficient and cost-effective hydraulic cartridge filter elements available in the market today.

The Swift Filters Microglass Replacement Filter Element Advantage
• An economical true equivalent in fit form and function
• Ideal for critical hydraulic filter applications
• Maximum performance wedge wire filter elements that typically exceeds OEM interchange
•6 micron capacity for increased dirt holding and particle capture efficiency

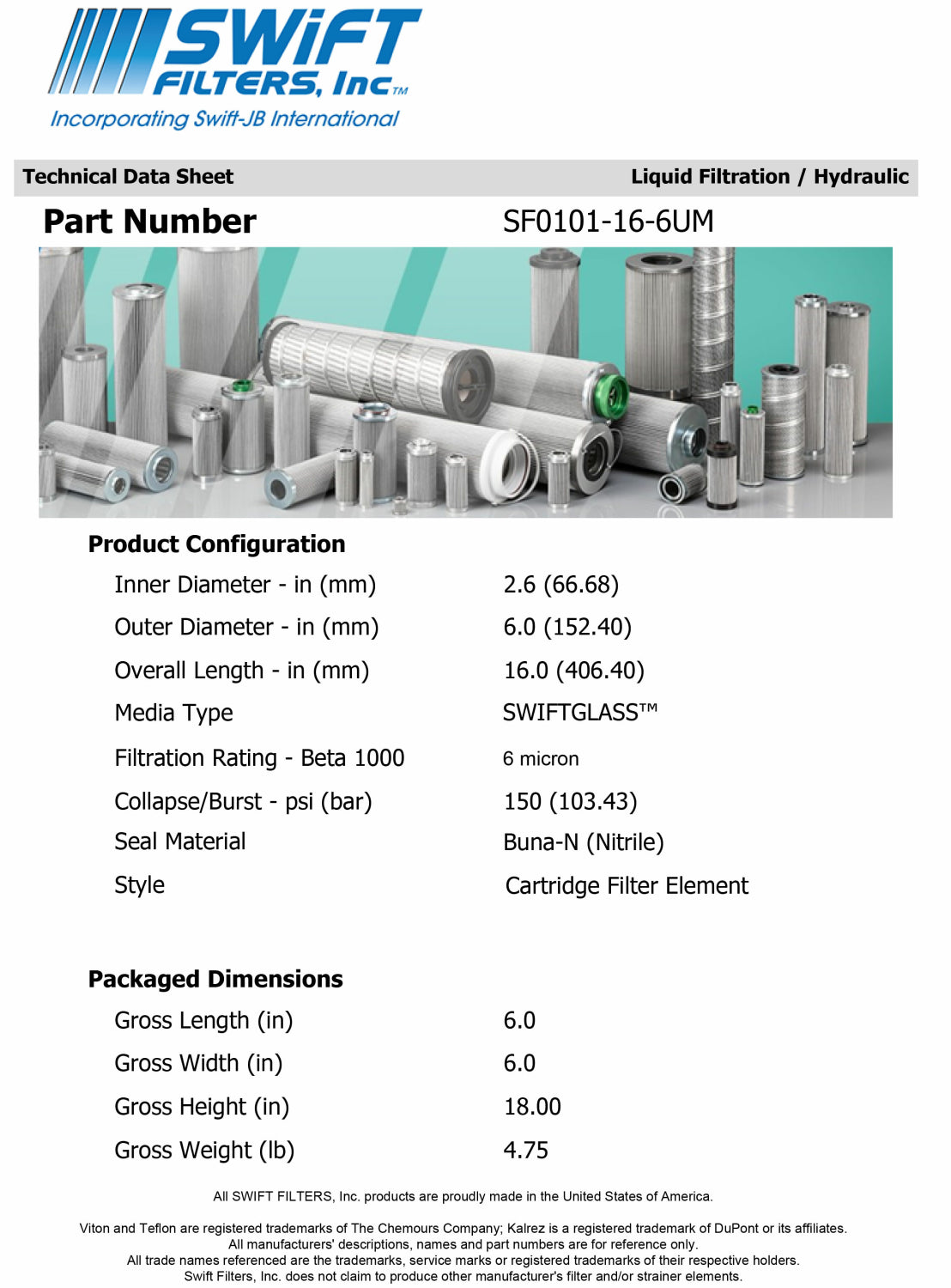

SF0101-16-6UM Filter Element Specifications

• MICRON RATING: 6 micron
• MEDIA TYPE: SWIFTGLASS
• SEAL MATERIAL: Buna-N (Nitrile)
• COLLAPSE: Can withstand pressure up to 150 PSI
• DIMENSIONS: Inner Diameter 2.625 in., Outer Diameter 6.000 in., Overall Length 16.000 in.

Made in the USA, Swift Filters specializes in the design and manufacture of high-quality replacement filter elements and custom filter elements for a wide variety of industries.
