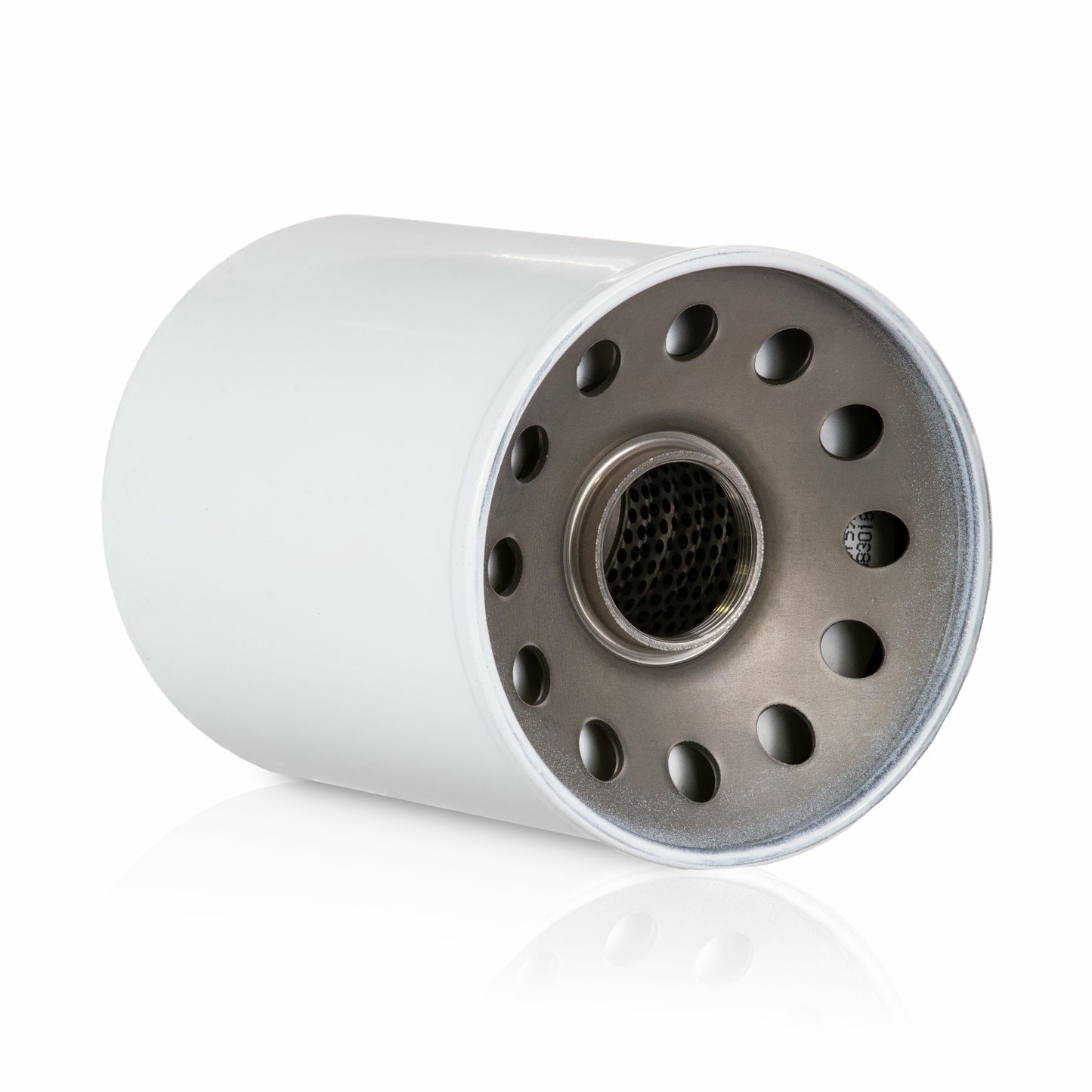

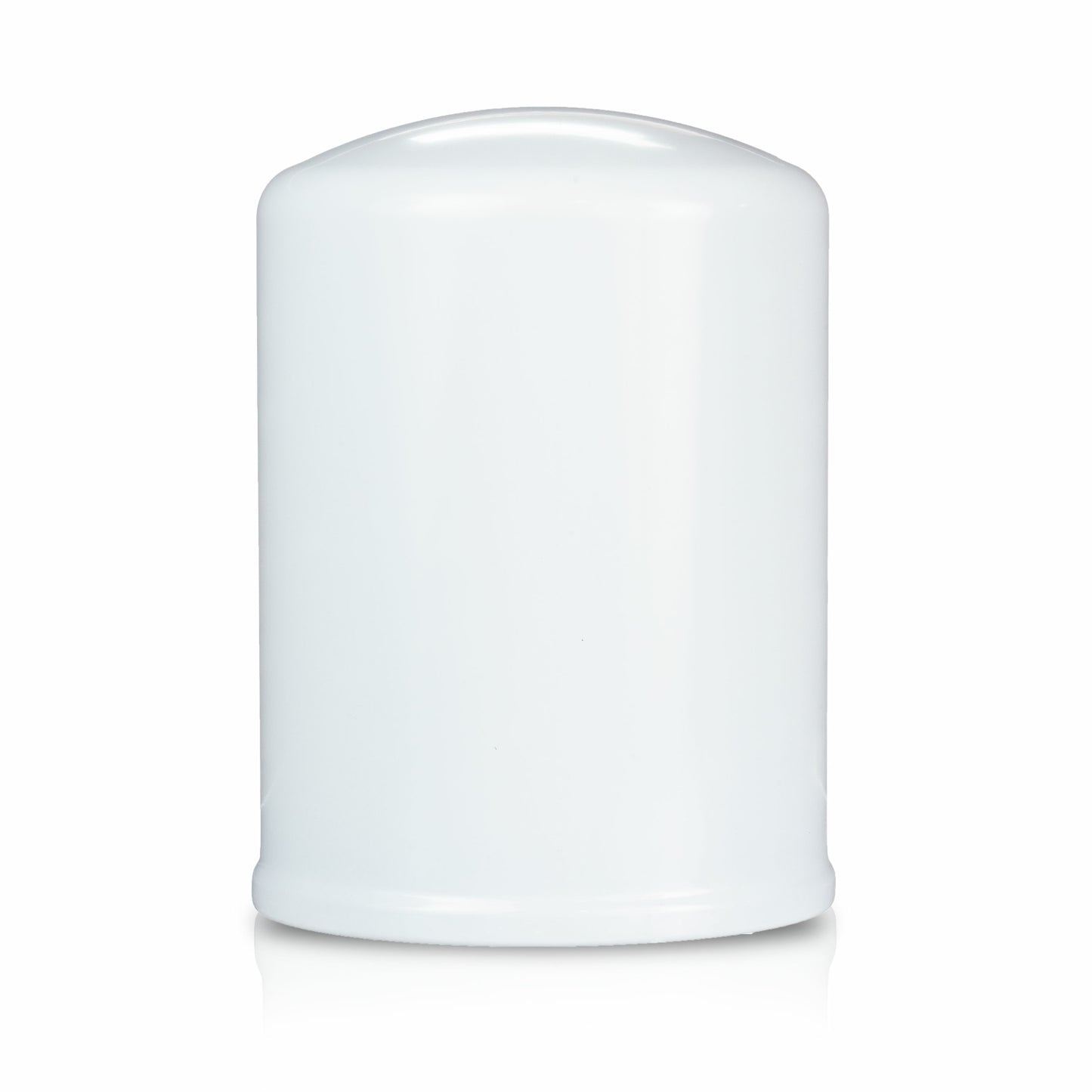

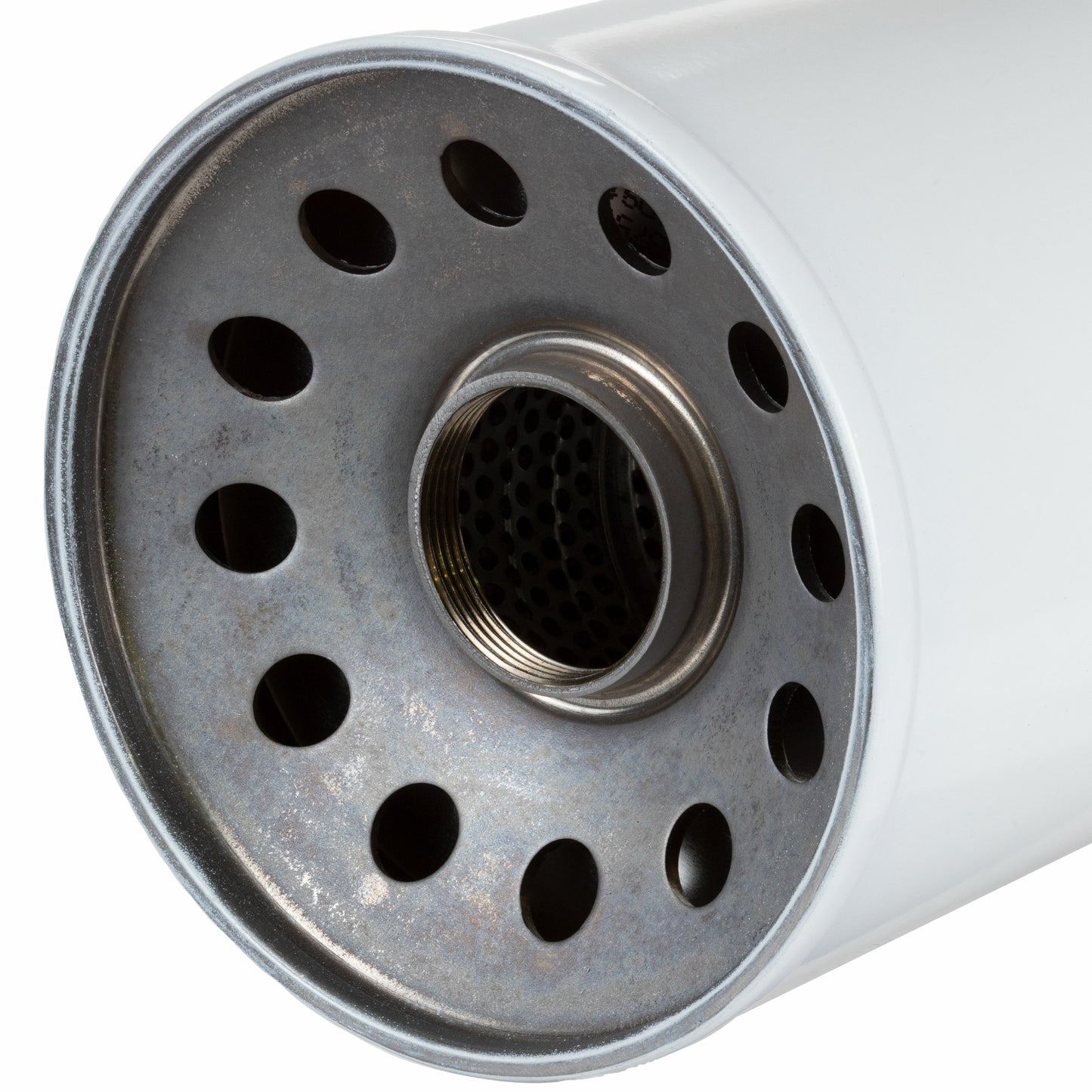

Spin-On Filter Element SF550MG 1 Micron Microglass

Swift Filters SF550MG is a highly durable 1 micron spin-on microglass filter element ideal for use with hydraulic, lubrication, and fuel applications.

All our spin-on microglass hydraulic filter elements feature high performance SWIFTGLASS® filter media comprised of high strength dual-phase synthetic fibers bonded with a stable resin set into a pleated multilayer construction, making it one of the most efficient and cost-effective hydraulic spin-on filter elements available in the market today.

Unparalleled Microglass Spin-On Filter Element Performance
• Offers the highest level of hydraulic filtration
• Beta Ratio 1000 ensures 99.9% contamination control across flow surges and temperature changes offering longer system life and less downtime
• Easier servicing- no tools needed

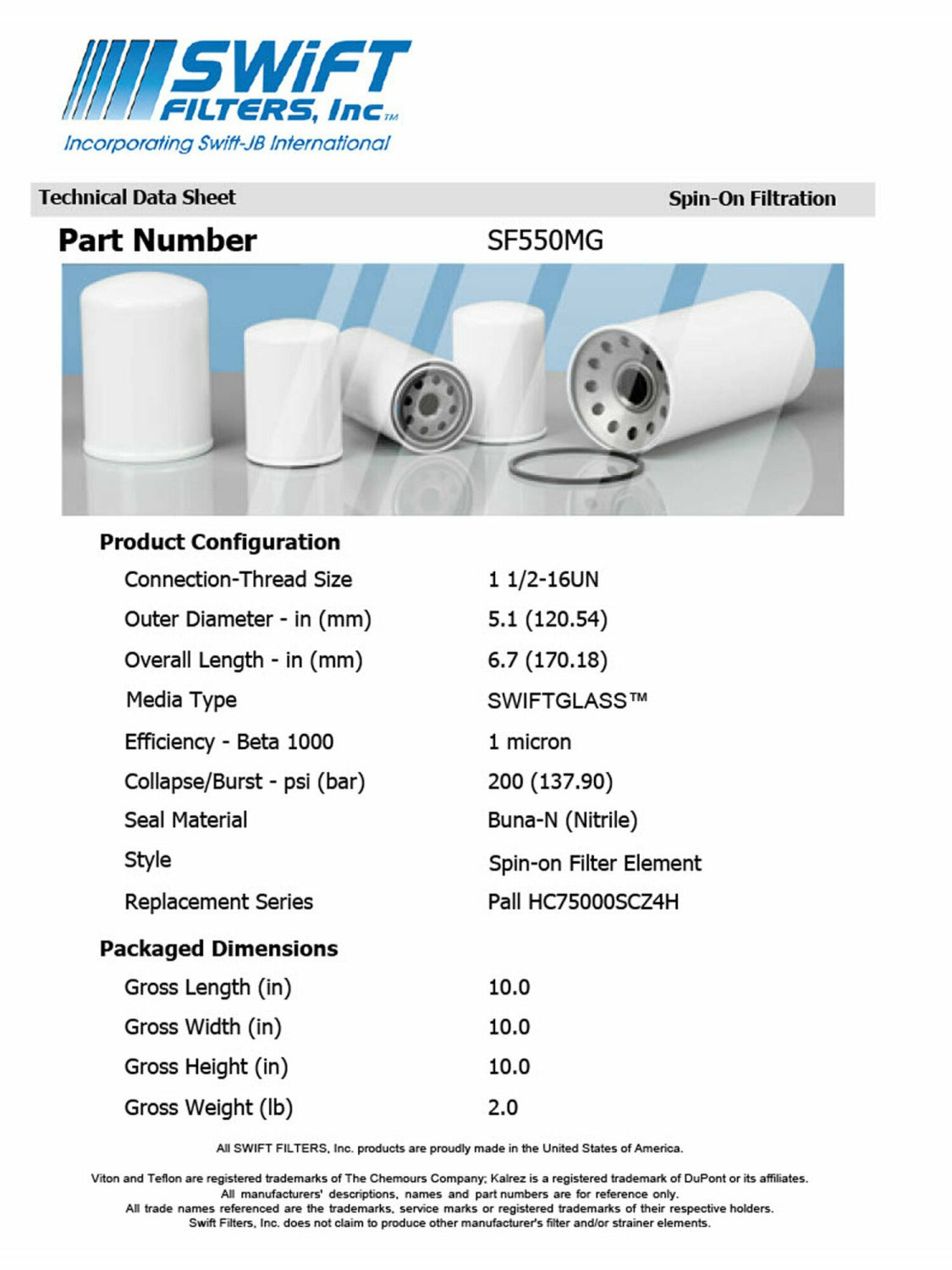

SF550MG Spin-On Filter Element Specifications

• MICRON RATING: 1 micron
• MEDIA TYPE: SWIFTGLASS® microglass
• SEAL MATERIAL: Buna-N (Nitrile)
• COLLAPSE: Can withstand pressure up to 200 PSI

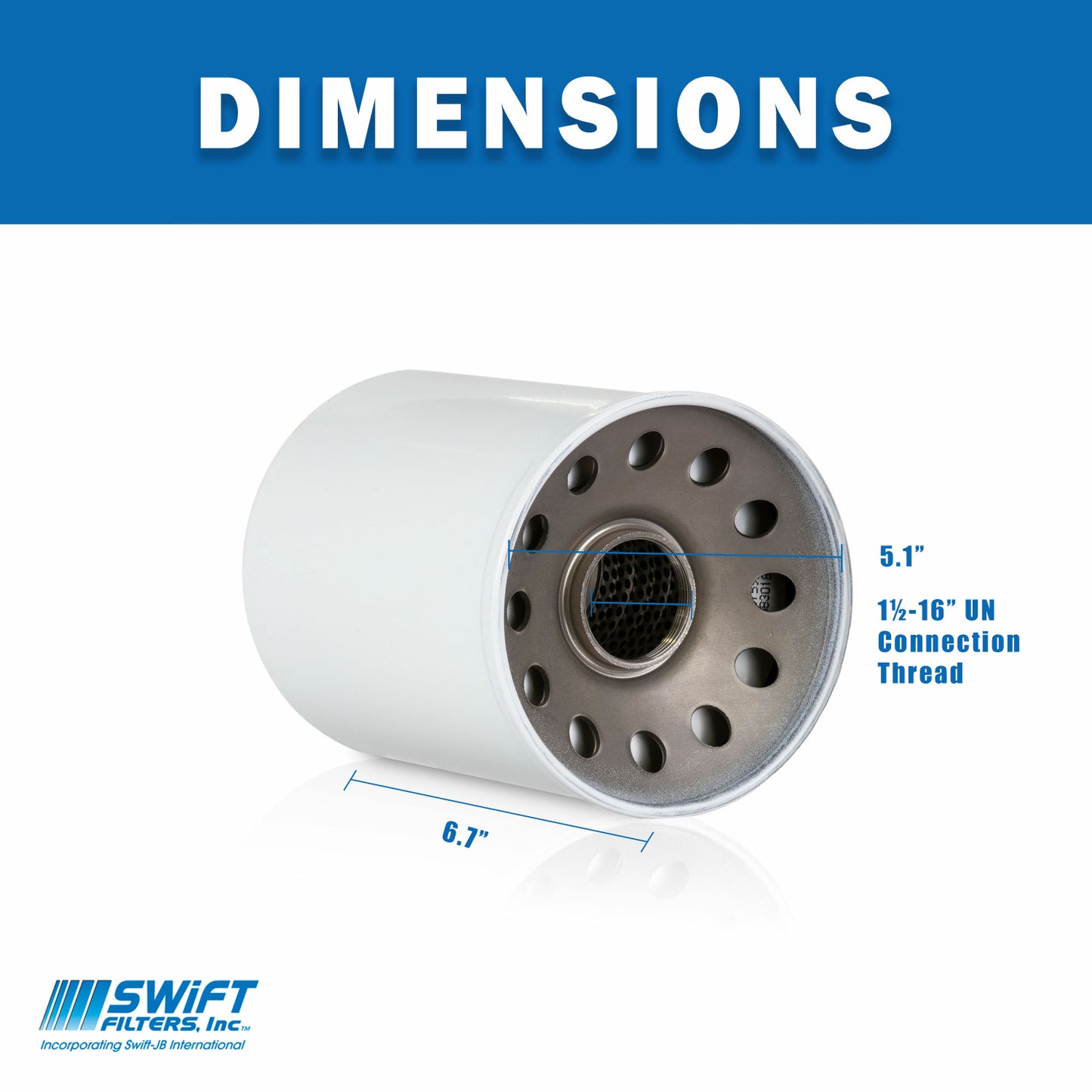

• CONNECTION-THREAD SIZE: 1 in.-16UN
• OUTER DIAMETER:  5.1 in.
• OVERALL LENGTH:  6.7 in.

• TEMPERATURE RANGE: -40°F to +250°F

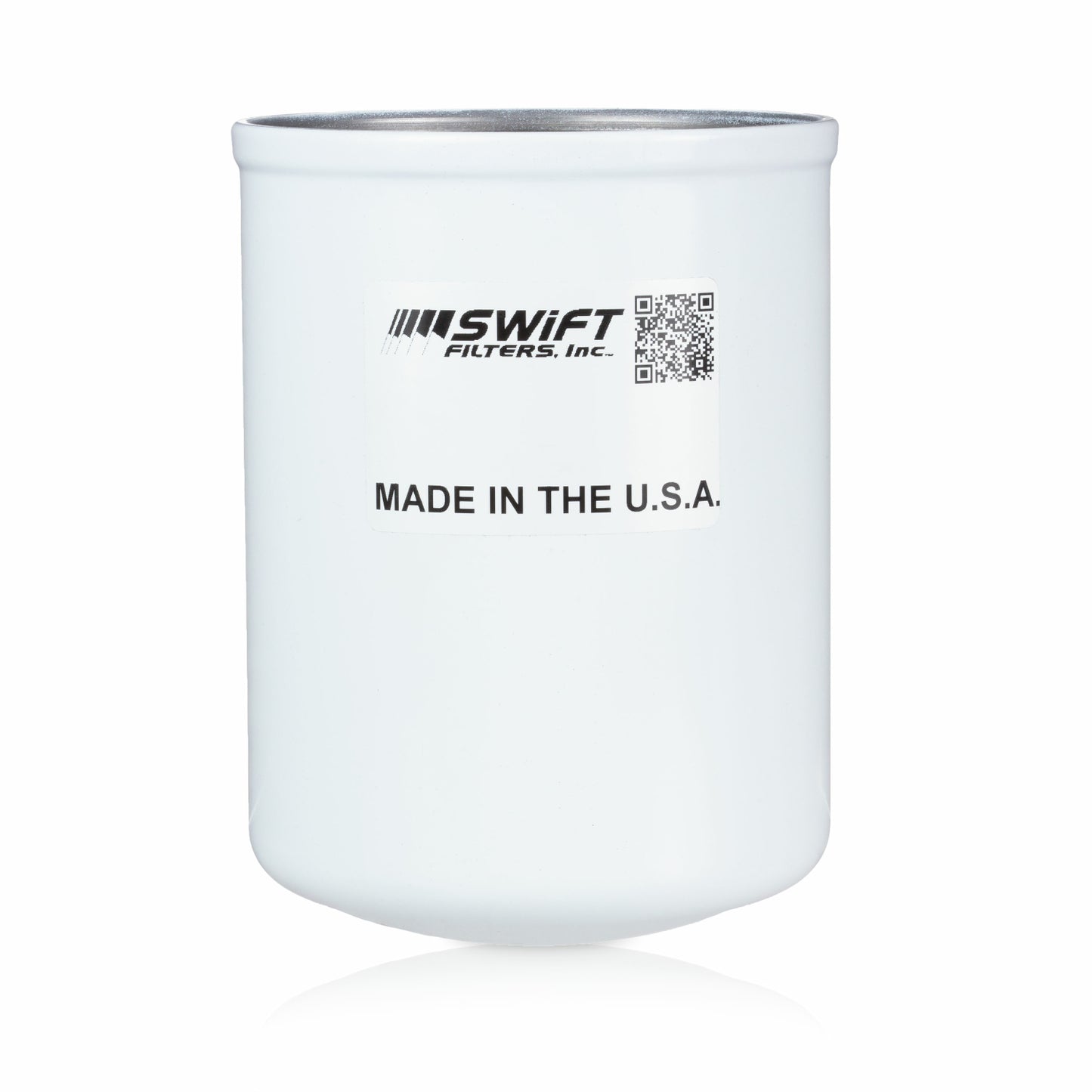

Made in the USA, Swift Filters specializes in the design and manufacture of high-quality replacement filter elements and custom filter elements for a wide variety of industries.
