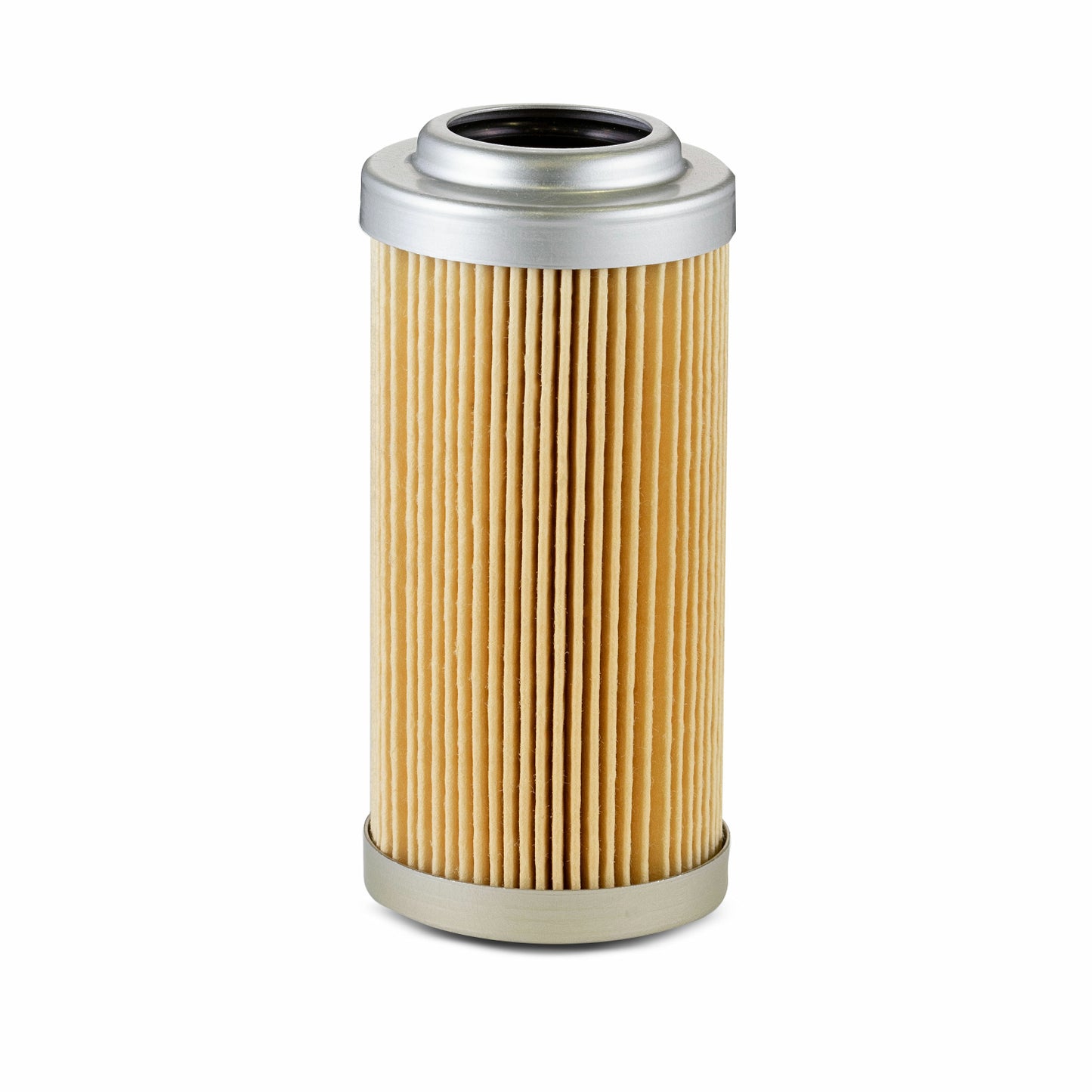

Cartridge Filter Element SF6235-3A 10 Micron Cellulose

Swift Filters SF6235-3A is a highly durable 10 micron cellulose cartridge filter element for use with fuels and petroleum-based fluid hydraulic filtration applications.

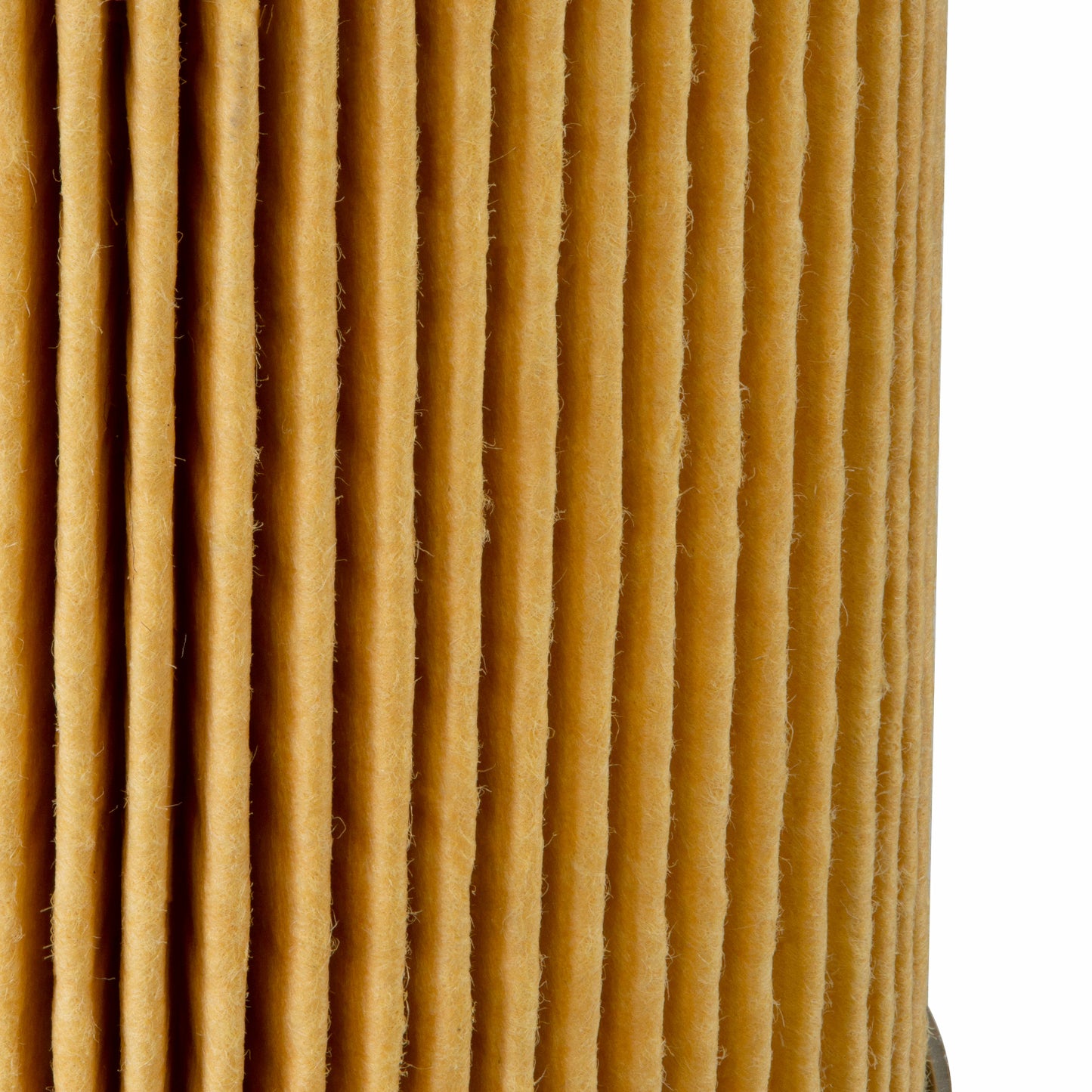

All our cellulose filter elements feature SWIFTCELL® filter media comprised of resin-impregnated pleated 100 percent cellulose filter media engineered to meet or exceed industry standards ensuring consistent performance every time.

The Swift Filters Replacement Cellulose Filter Element Advantage
•  High Strength and Durability-cellulose exhibits high-strength characteristics
•  Sustainable Solution-cellulose is biodegradable and can be safely disposed of and repurposed, making it an environmentally friendly option
•  Large Surface Area-nanofiber structure provides a large surface area for effective trapping of contaminants
•  Highly Porous-can bind pollutants effectively to its surface
•  Cost Effective-our high quality cellulose filter elements are one of the most economical filter media options available in the market today
• High Versatility- can be used in various applications, including engine air intake filters, fuel and oil filtration, and hydraulic filters
• Nominally Rated at Bx(c)=1000 filtration efficiency

SF6235-3A Filter Element Specifications

• MICRON RATING: 10 micron
• MEDIA TYPE: SWIFTCELL® Cellulose
• SEAL MATERIAL: Buna-N (Nitrile)
• COLLAPSE: Can withstand pressure up to 150 psi

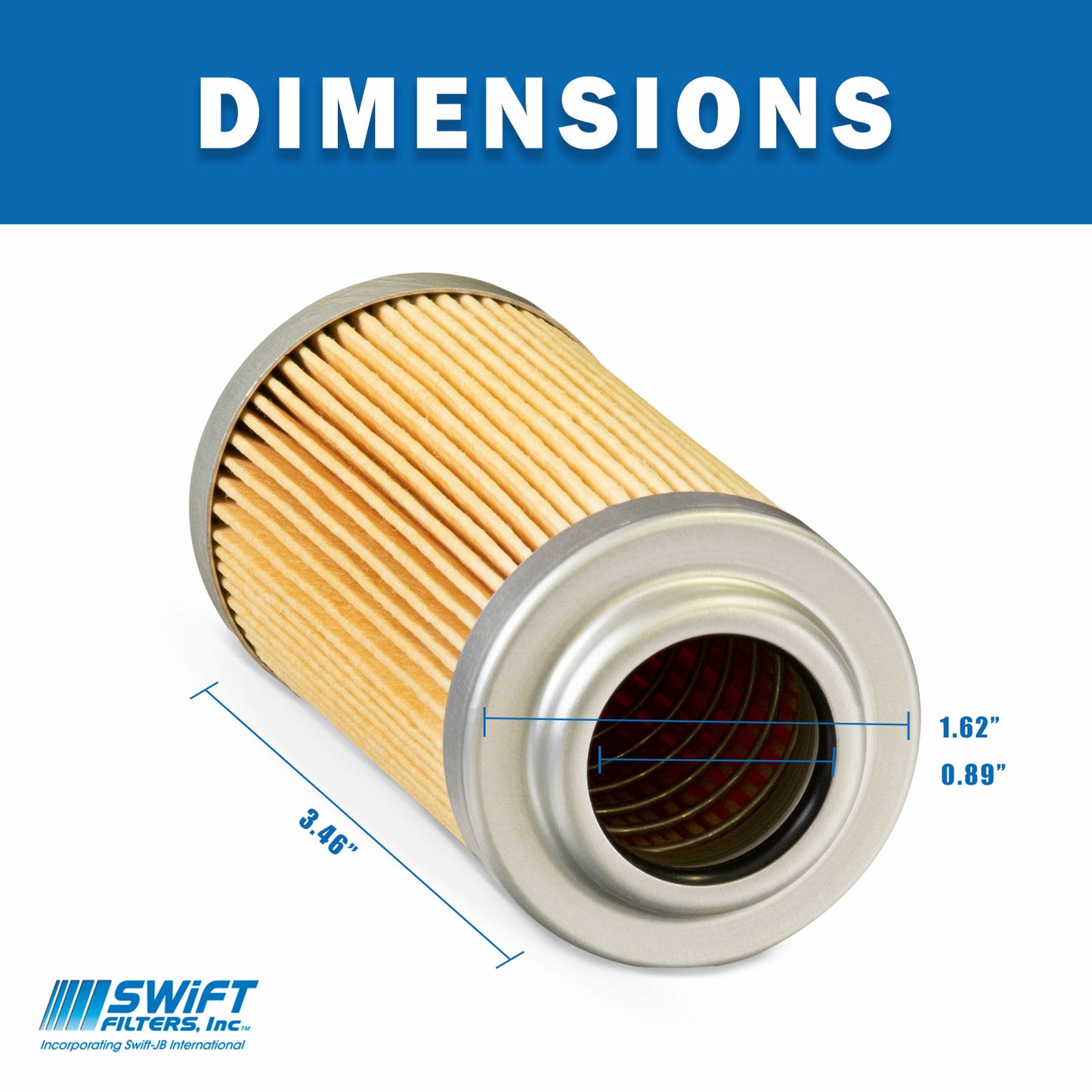

• DIMENSIONS: Inner Diameter 0.891 in., Outer Diameter 1.625 in., Overall Length 3.468 in.
• TEMPERATURE RANGE: -40°F to +250°F

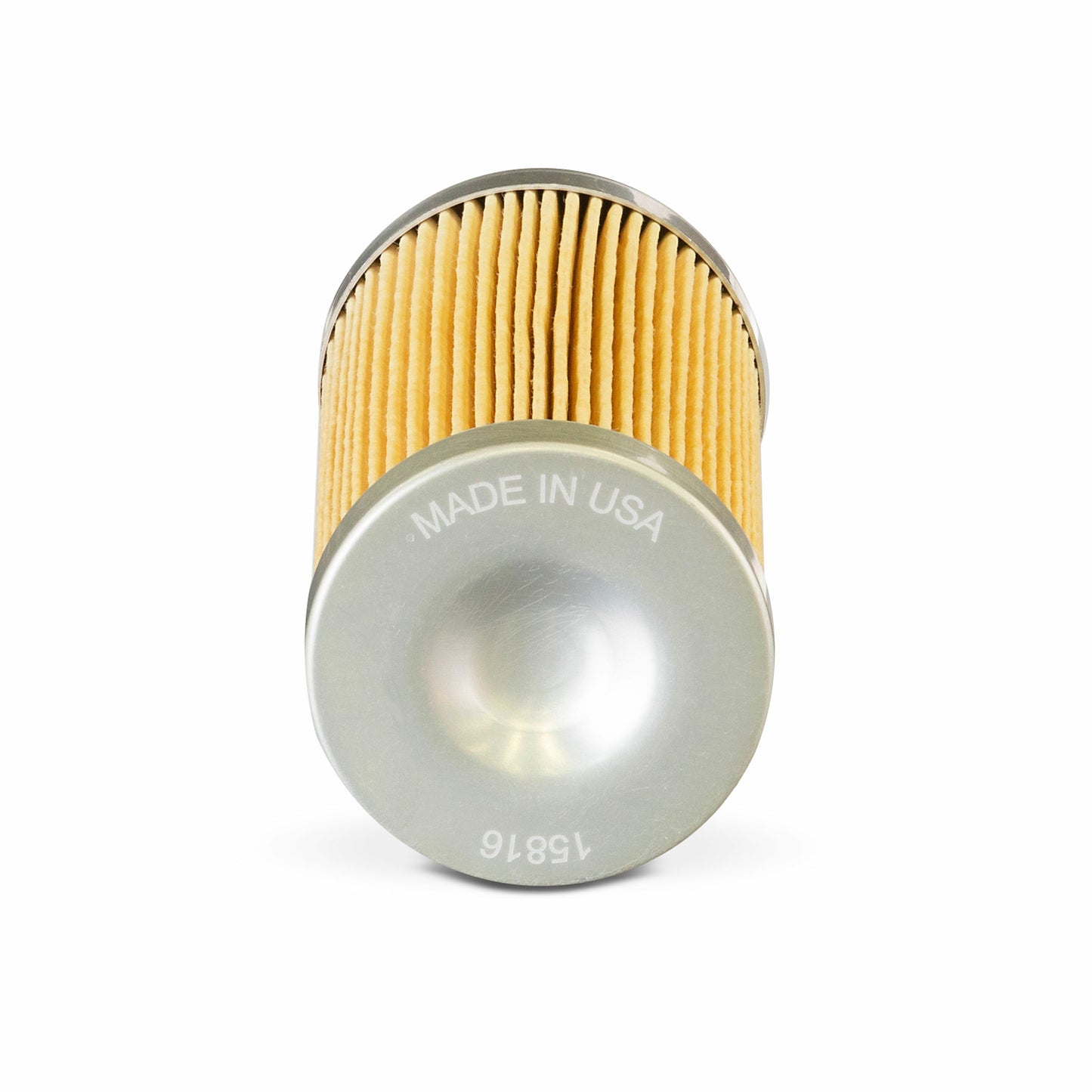

MADE IN THE USA
NSN
4330-00-431-6641
4330-00-732-6535
CAGE Code: 3U011

The Swift Filters SF6235 microglass filter element product line is a direct OEM replacement for many manufacturers including:
Baldwin
Donaldson
Filtrec
Fleetguard
Hy-Pro
Hydac
Internormen
MP Filtri
Parker Hannifin
Stauff
Vickers
