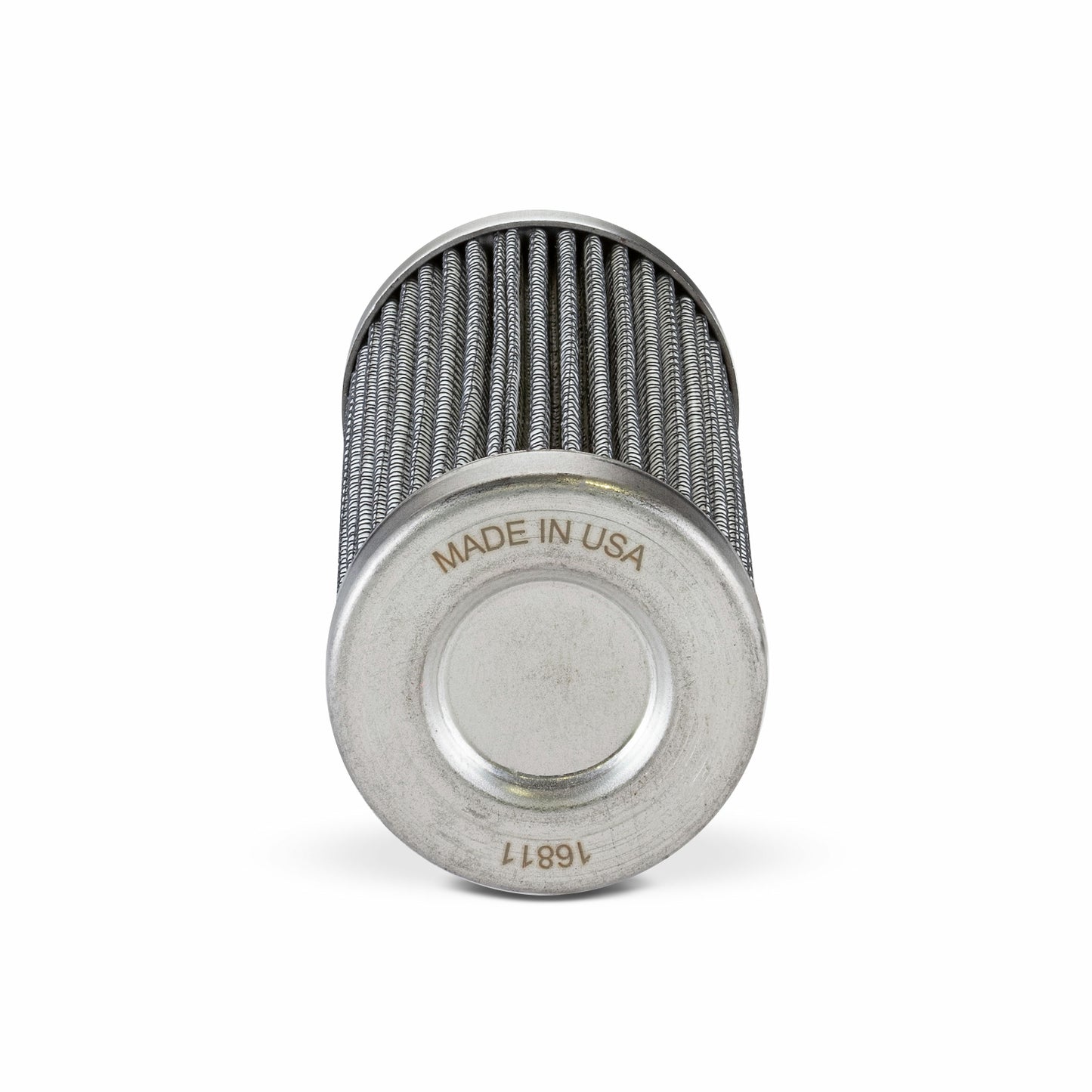

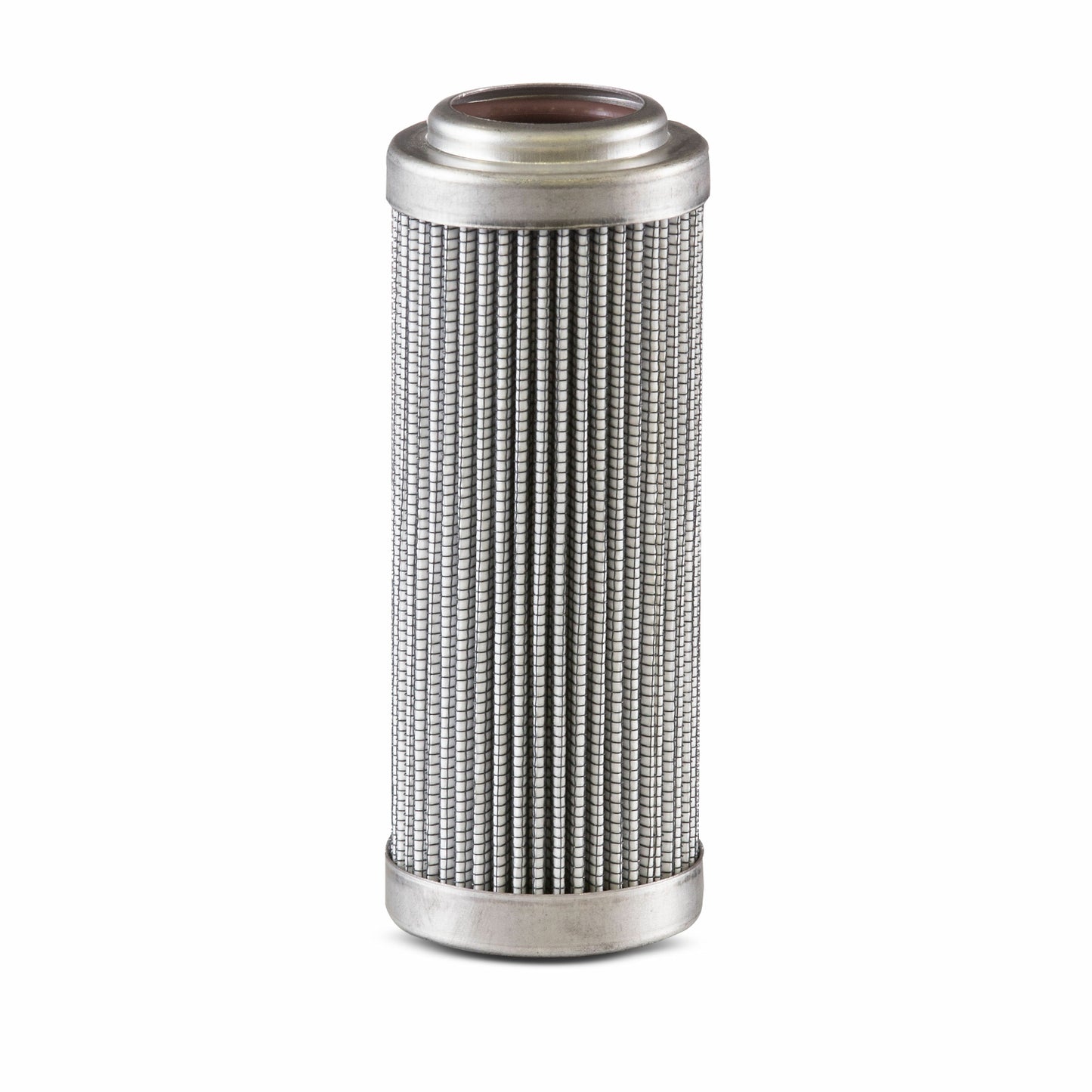

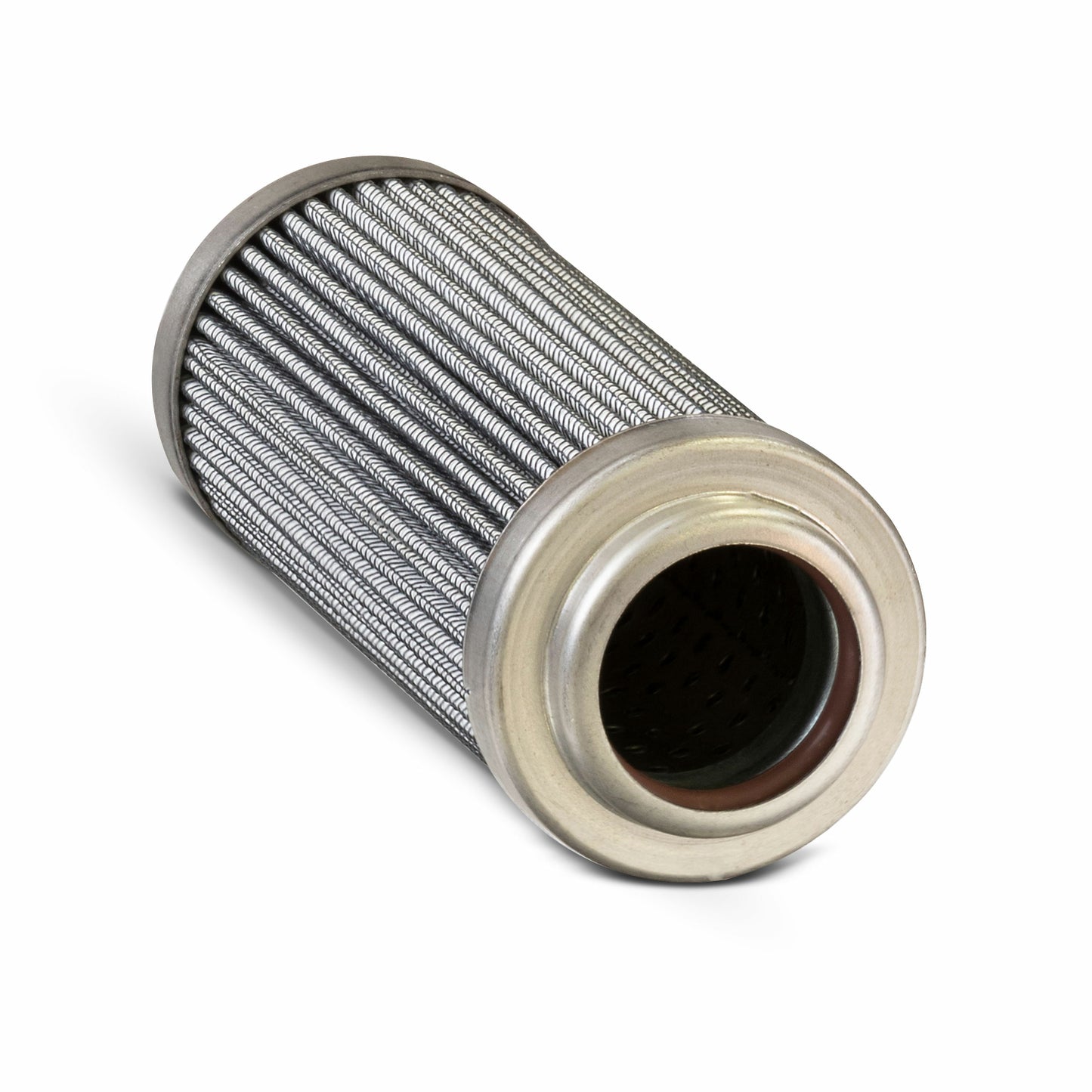

Cartridge Filter Element SF9020-4-1UMV 1 Micron Microglass

Swift Filters SF9020-4-1UMV is a highly durable 1 micron cartridge filter element ideal for use with fuels and petroleum-based fluid hydraulic filtration applications.

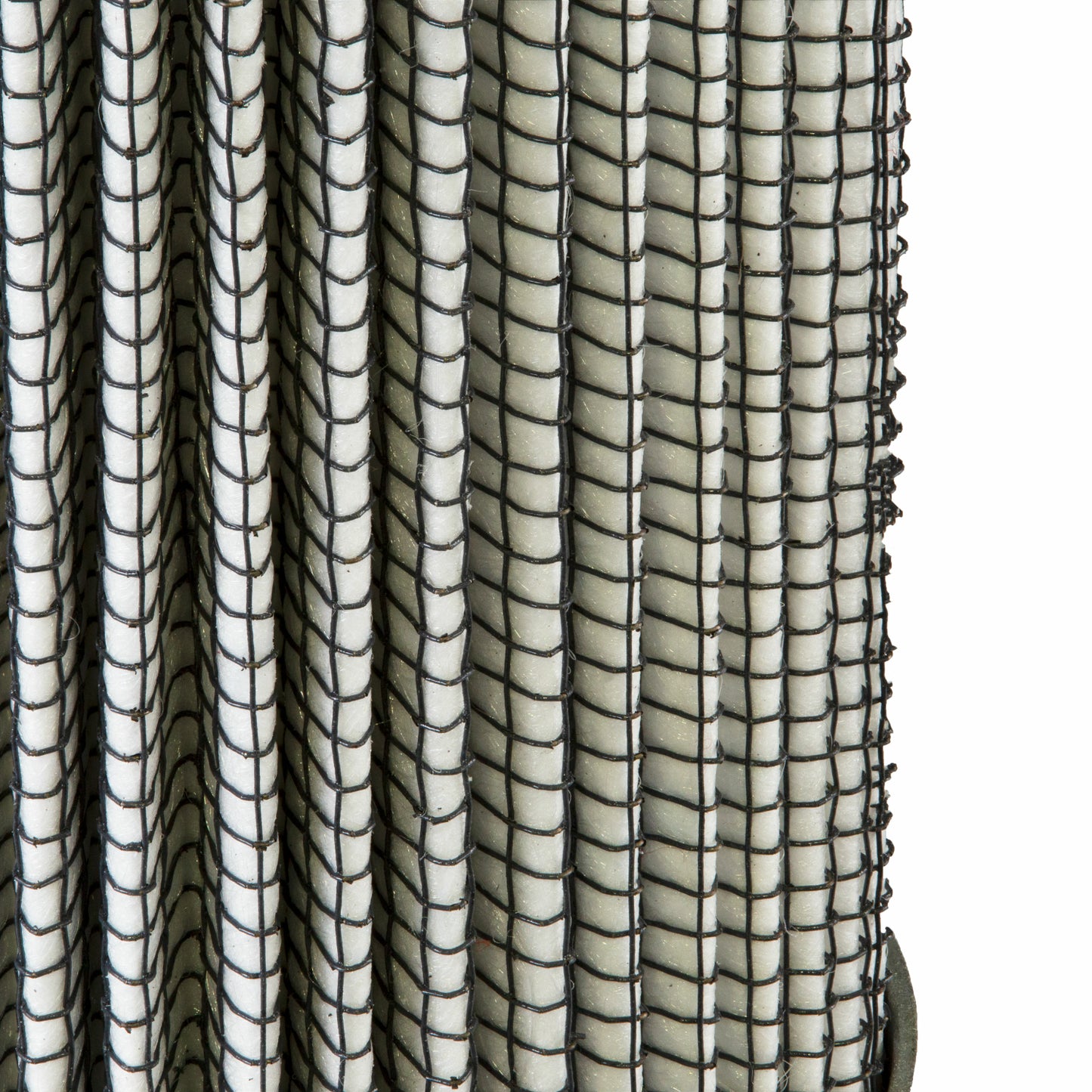

All our microglass filter elements feature high performance SWIFTGLASS® microglass filter media comprised of high strength dual-phase synthetic fibers bonded with a stable resin set into a pleated multilayer construction, making it one of the most efficient and cost-effective hydraulic cartridge filter elements available in the market today.

;The Swift Filters Microglass Replacement Filter Element Advantage
• An economical true equivalent in fit form and function
• Ideal for critical hydraulic filter applications
• Maximum performance wedge wire filter elements that typically exceeds OEM interchange
• 1 micron capacity for increased dirt holding and particle capture efficiency

Unparalleled Microglass Filter Element Performance
• Offers the highest level of hydraulic filtration
• Beta Ratio 1000 ensures 99.9% contamination control across flow surges and temperature changes offering longer system life and less downtime
• Easier servicing- no tools needed

SF9020-4-1UMV Filter Element Specifications

• MICRON RATING: 1 micron
• MEDIA TYPE: SWIFTGLASS® microglass
• SEAL MATERIAL: Viton (Flourocarbon Type A)
• COLLAPSE: Can withstand pressure up to 300 psi

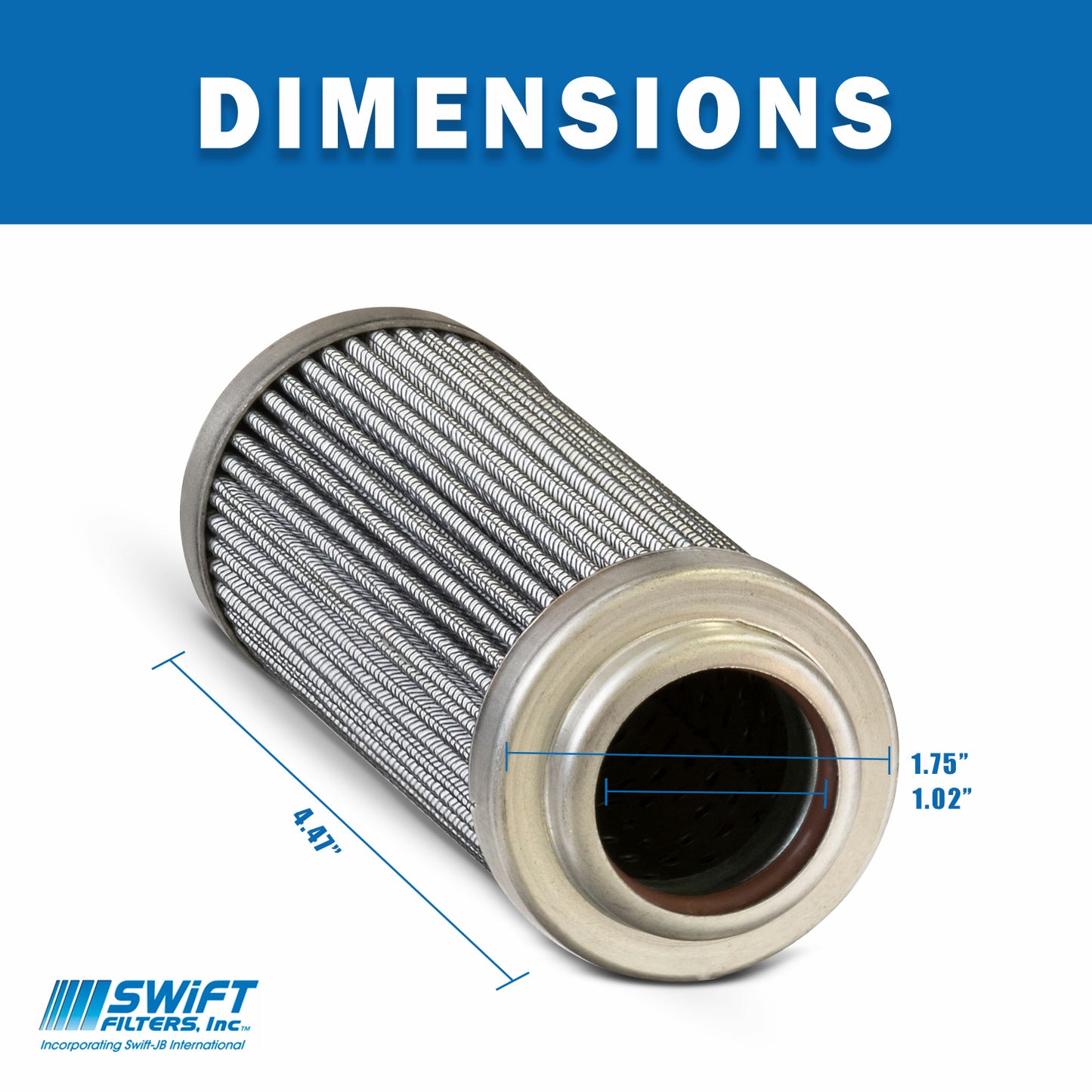

• DIMENSIONS: Inner Diameter 1.02 in., Outer Diameter 1.75 in., Overall Length 4.47 in.
• TEMPERATURE RANGE: -10°F to +250°F

Made in the USA, Swift Filters specializes in the design and manufacture of high-quality replacement filter elements and custom filter elements for a wide variety of industries.
