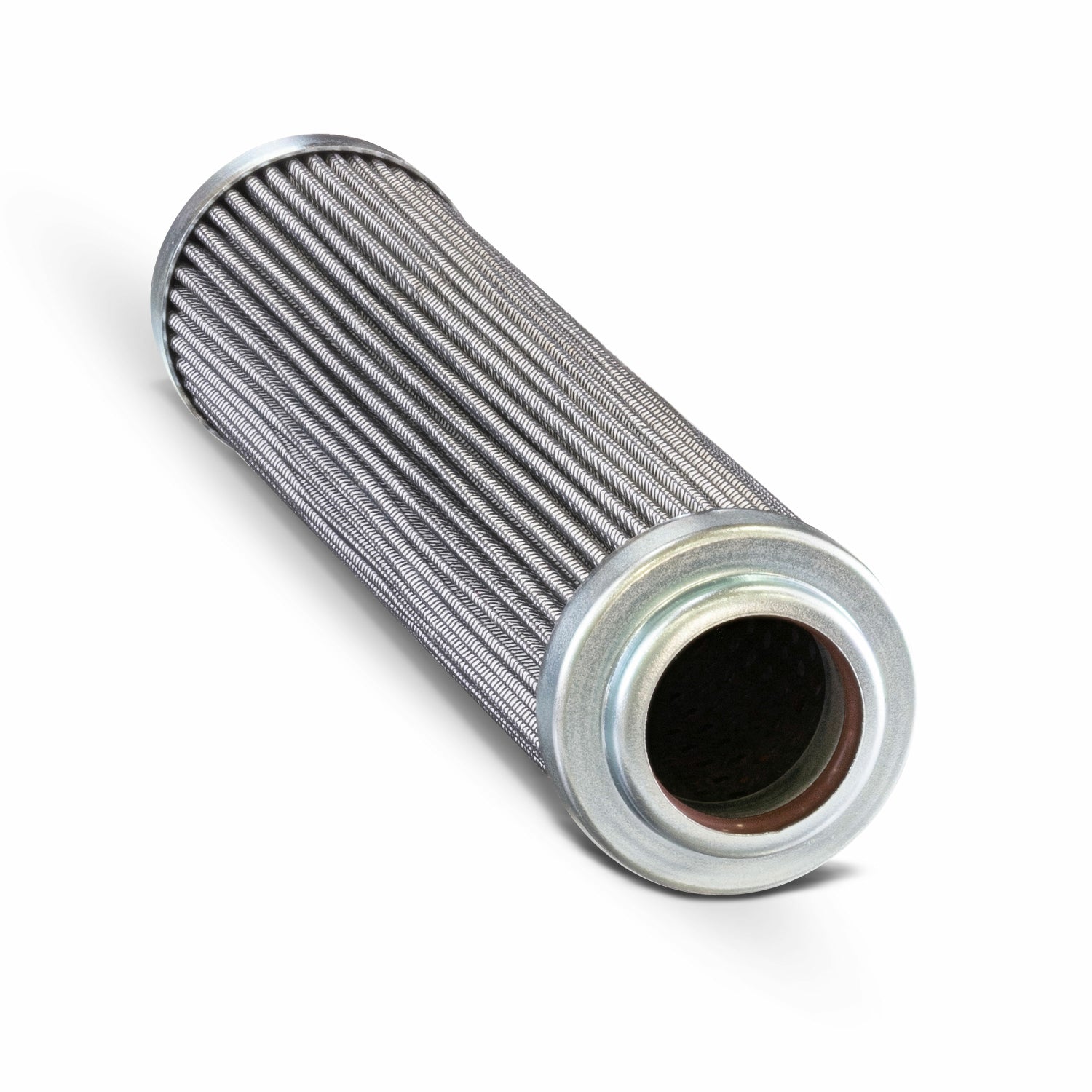

Cartridge Filter Element SF9020-8-25UM 25 Micron Microglass

Swift Filters SF9020-8-25UM is a highly durable 25 micron cartridge filter element ideal for use with fuels and petroleum-based fluid hydraulic filtration applications.

All our microglass filter elements feature high performance SWIFTGLASS® microglass filter media comprised of high strength dual-phase synthetic fibers bonded with a stable resin set into a pleated multilayer construction, making it one of the most efficient and cost-effective hydraulic cartridge filter elements available in the market today.

The Swift Filters Microglass Replacement Filter Element Advantage
• An economical true equivalent in fit form and function
• Ideal for critical hydraulic filter applications
• Maximum performance wedge wire filter elements that typically exceeds OEM interchange
• 25 micron capacity for increased dirt holding and particle capture efficiency

 Unparalleled Microglass Filter Element Performance
• Offers the highest level of hydraulic filtration
• Beta Ratio 1000 ensures 99.9% contamination control across flow surges and temperature changes offering longer system life and less downtime
• Easier servicing- no tools needed

 SF9020-8-25UM Filter Element Specifications

• MICRON RATING: 25 micron
• MEDIA TYPE: SWIFTGLASS® microglass
• SEAL MATERIAL: Buna-N (Nitrile)
• COLLAPSE: Can withstand pressure up to 300 psi
• DIMENSIONS: Inner Diameter 1.02 in., Outer Diameter 1.75 in., Overall Length 8.18 in.
• TEMPERATURE RATING: -65°F to +225°F

Made in the USA, Swift Filters specializes in the design and manufacture of high-quality replacement filter elements and custom filter elements for a wide variety of industries.
