- Sku: SF9700-27-12UMV
- Type: Cartridge

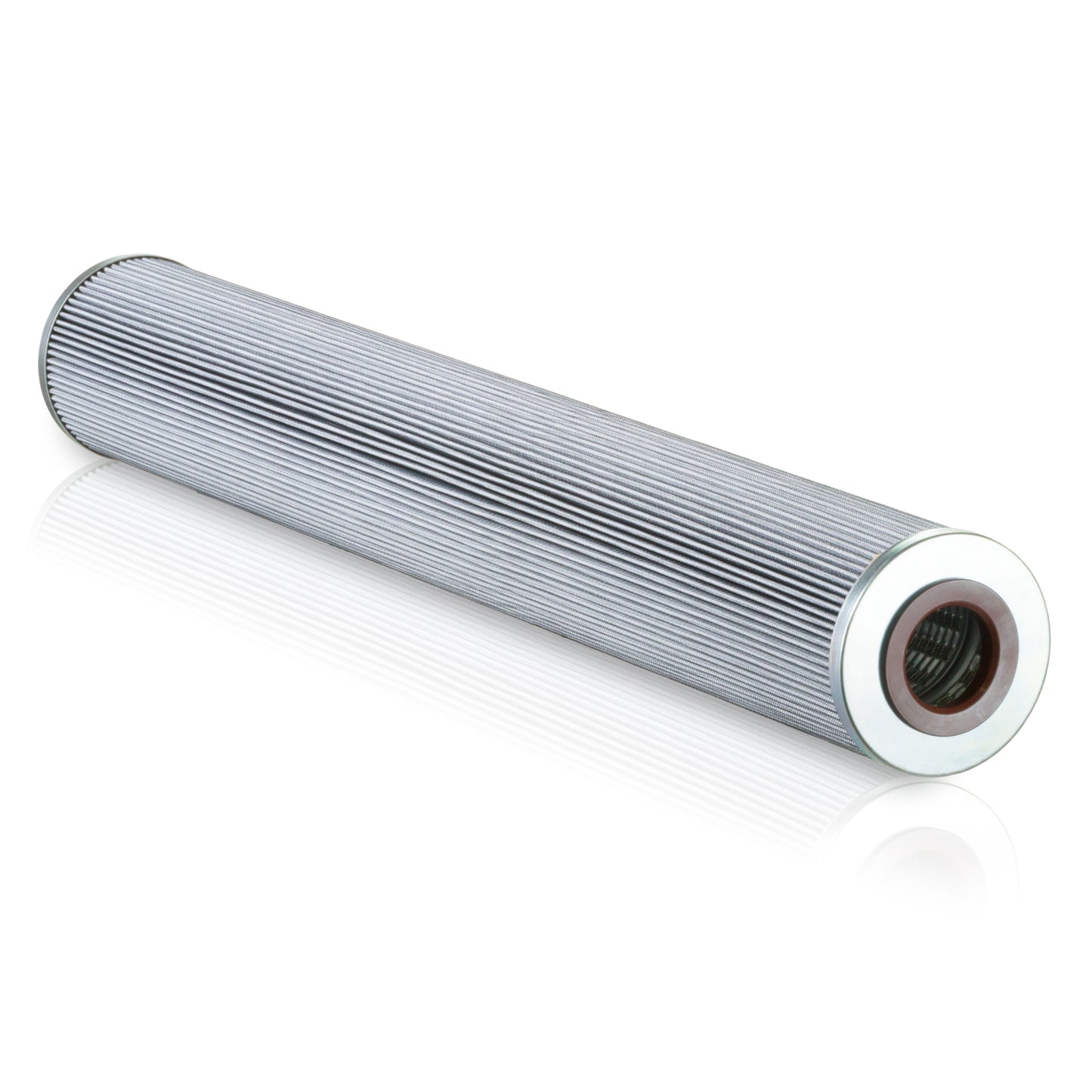

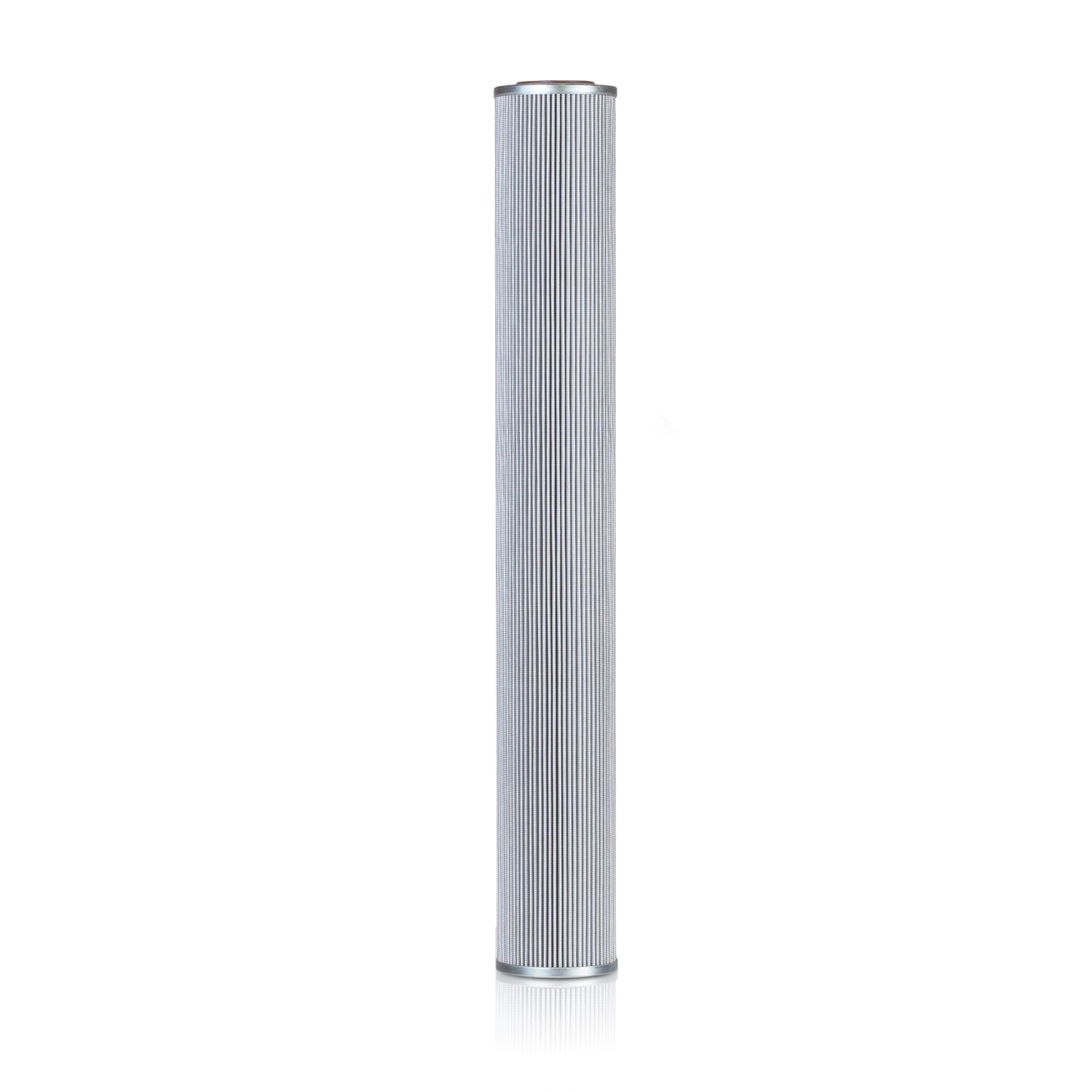

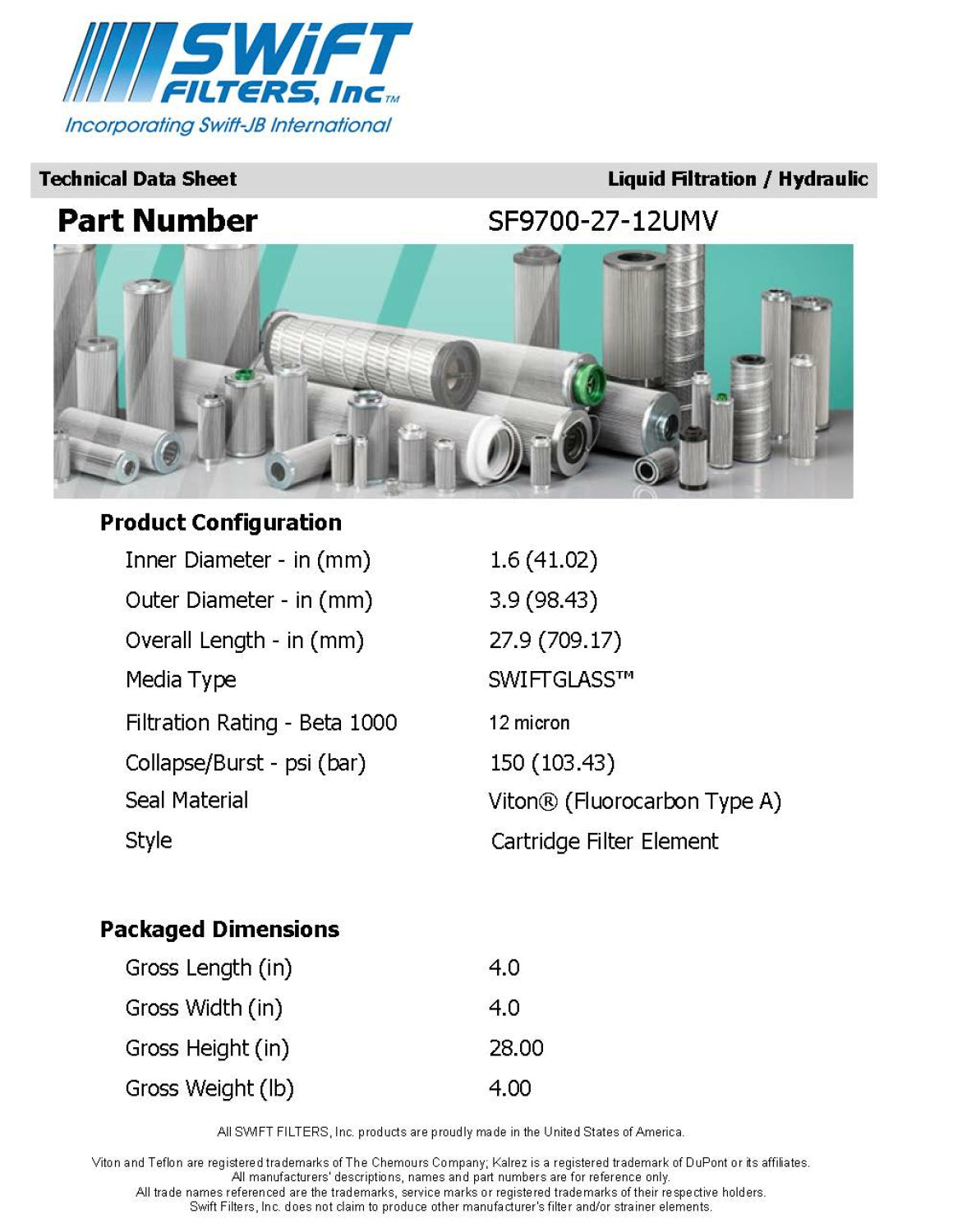

Cartridge Filter Element SF9700-27-12UMV 12 Micron Microglass
Made in the USA
ISO 9001:2015
Manufacturer of High Performance Replacement Filter Elements
For over 200 domestic and foreign manufacturers
The SF9700-27-12UMV is a highly durable Cartridge Filter Element for fuels and petroleum-based fluids. With an Inner Diameter of 1.615 in., an Outer Diameter of 3.875 in., and an Overall Length of 27.920 in., our cartridge element is a high-performance replacement. Our trademarked microglass media, SWIFTGLASS , has a 12 micron filter rating to remove any larger particulates. This filter element can withstand temperatures from -40 to +250 degrees Fahrenheit Made in the USA, Swift Filters specializes in the design and manufacture of high-quality replacement filter elements and custom filter elements for a wide variety of industries. Swift Filters, Inc. maintains high standards in filter performance and quality in order to provide customers with a reliable product. Be sure to read all product specifications and dimensions before ordering to ensure you receive the filter element right for you
- MICRON RATING: A particle retention size of 12 micron will ensure all contaminants are removed, making sure the filter performs at its highest efficiency
- MEDIA TYPE: SWIFTGLASS

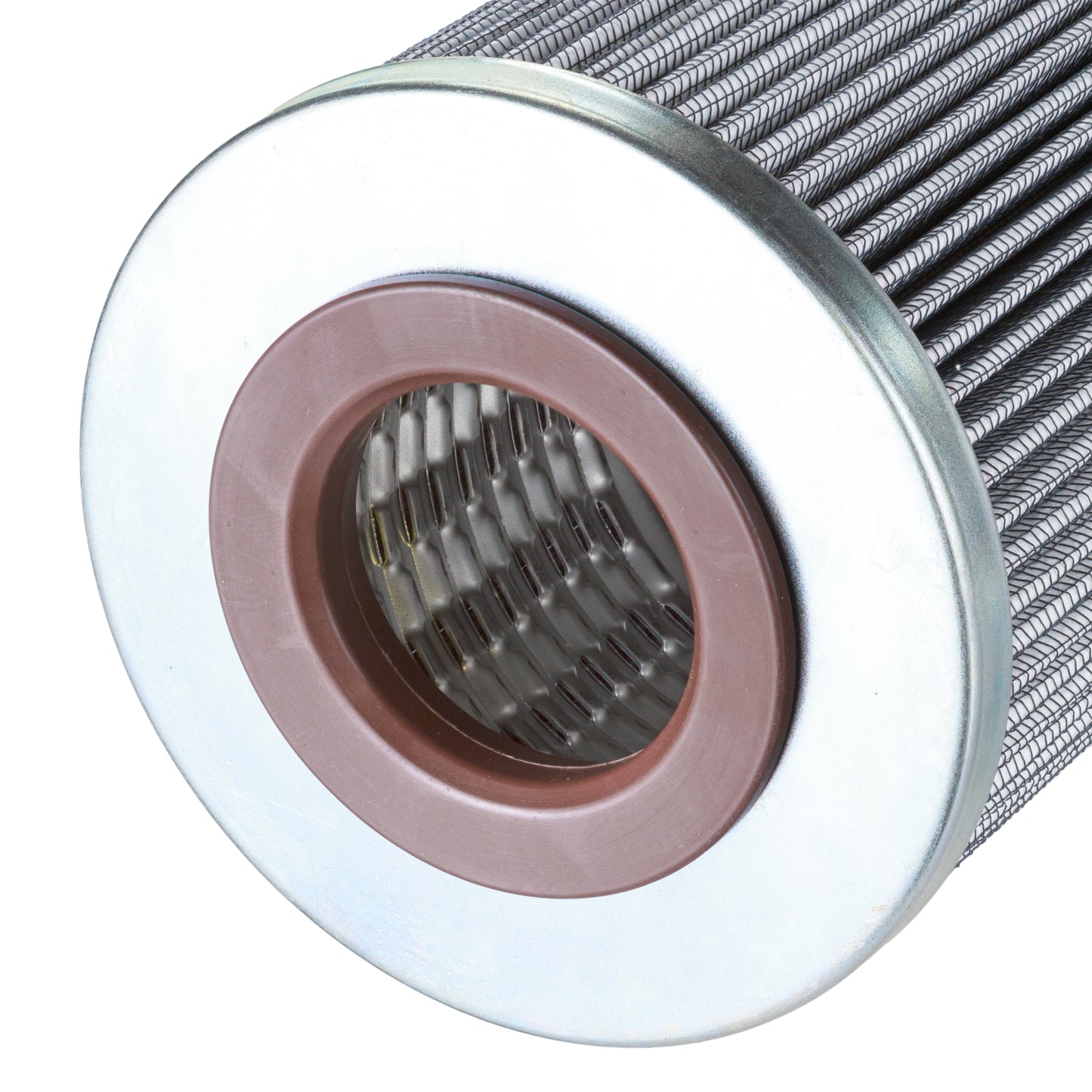

- SEAL MATERIAL: Viton (Fluorocarbon Type A)
- COLLAPSE: Can withstand pressure up to 150 PSI

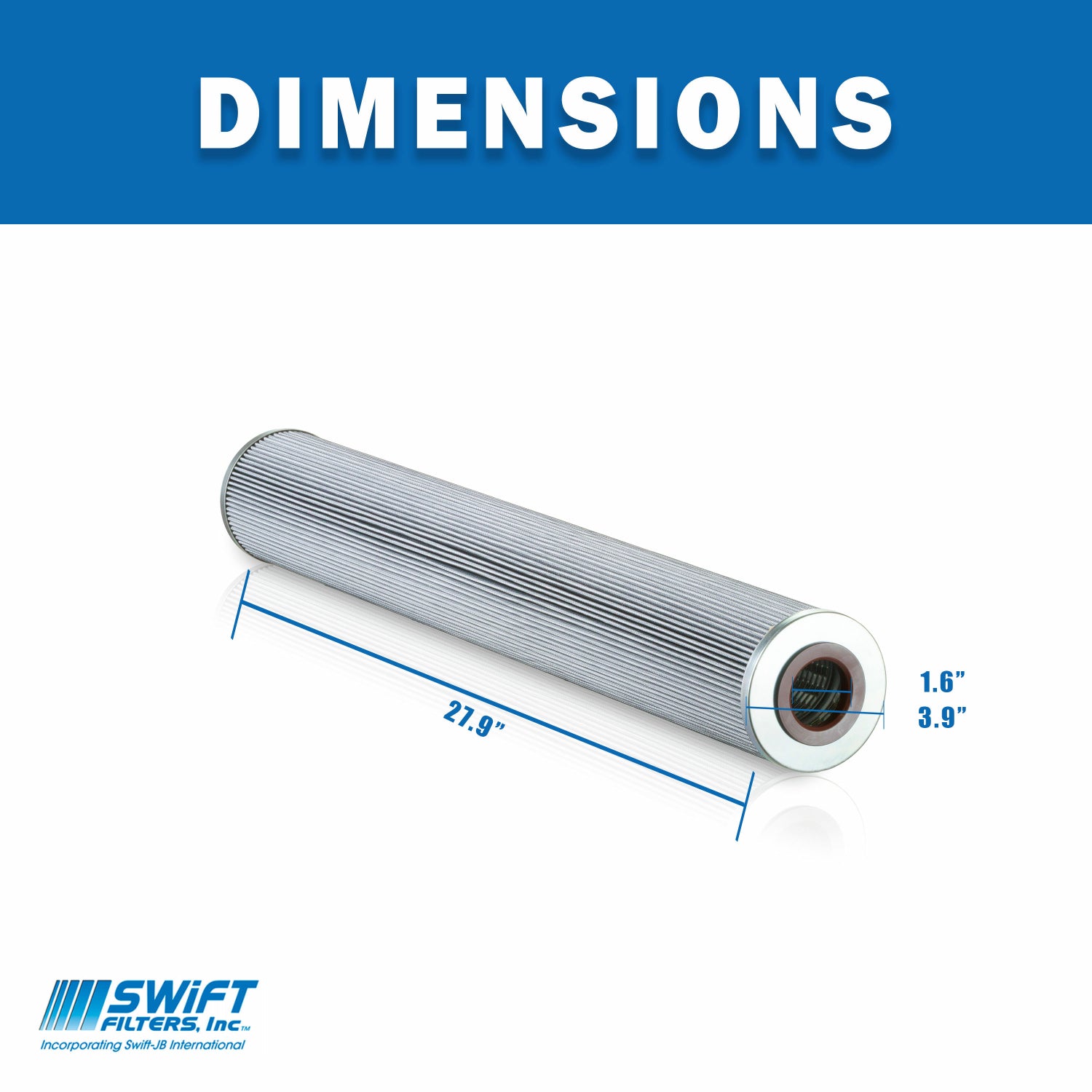

- DIMENSIONS: Inner Diameter 1.615 in., Outer Diameter 3.875 in., Overall Length 27.920 in.
![Cartridge Filter Element SF9700-27-12UMV 12 Micron Microglass](http://www.swiftfilters.com/cdn/shop/products/c9061a810eaff5260f0b79053047de53f7bf9ff8-1500-1500_m_85ea107d-1f77-45cf-a0e6-2a40bb8c6536.jpg?v=1677788903&width=1445)
![Cartridge Filter Element SF9700-27-12UMV 12 Micron Microglass](http://www.swiftfilters.com/cdn/shop/products/3e272f2261793abbf335640af67b967b82f61f99-1500-1500_m_cc32c254-8d6d-4c55-96d4-7f3ffbb7faa8.jpg?v=1677788905&width=1445)
![Cartridge Filter Element SF9700-27-12UMV 12 Micron Microglass](http://www.swiftfilters.com/cdn/shop/products/4bfbd83e1c7a3f80e6fc11a96a081f4c940df721-1500-1500_m_d4c13716-bf58-49d2-bb11-aee24b7a6681.jpg?v=1677788907&width=1445)
![Cartridge Filter Element SF9700-27-12UMV 12 Micron Microglass](http://www.swiftfilters.com/cdn/shop/products/cd9553e8f454c39804c50fa29b5b5381bdb6d30a-1500-1500_m_d7aba35d-e166-40de-b30c-ee025816111e.jpg?v=1677788908&width=1445)
![Cartridge Filter Element SF9700-27-12UMV 12 Micron Microglass](http://www.swiftfilters.com/cdn/shop/products/b5f992f4dd6685cea628db12e8c30e85ea40d934-1500-1500_m_494db9fc-9e18-4ef3-bbc1-6963ffa6281c.jpg?v=1677788910&width=1445)
Cartridge Filter Element SF9700-27-12UMV 12 Micron Microglass
