- Sku: SF9700-27-25UM
- Type: Cartridge
Cartridge Filter Element SF9700-27-25UM 25 Micron Microglass
Made in the USA
ISO 9001:2015
Manufacturer of High Performance Replacement Filter Elements
For over 200 domestic and foreign manufacturers
The SF9700-27-25UM is a highly durable Cartridge Filter Element for fuels and petroleum-based fluids. With an Inner Diameter of 1.615 in., an Outer Diameter of 3.875 in., and an Overall Length of 27.920 in., our cartridge element is a high-performance replacement. Our trademarked microglass media, SWIFTGLASS , has a 25 micron filter rating to remove any larger particulates. This filter element can withstand temperatures from -40 to +250 degrees Fahrenheit Made in the USA, Swift Filters specializes in the design and manufacture of high-quality replacement filter elements and custom filter elements for a wide variety of industries. Swift Filters, Inc. maintains high standards in filter performance and quality in order to provide customers with a reliable product. Be sure to read all product specifications and dimensions before ordering to ensure you receive the filter element right for you
- MICRON RATING: A particle retention size of 25 micron will ensure all contaminants are removed, making sure the filter performs at its highest efficiency
- MEDIA TYPE: SWIFTGLASS
- SEAL MATERIAL: Buna-N (Nitrile)
- COLLAPSE: Can withstand pressure up to 150 PSI

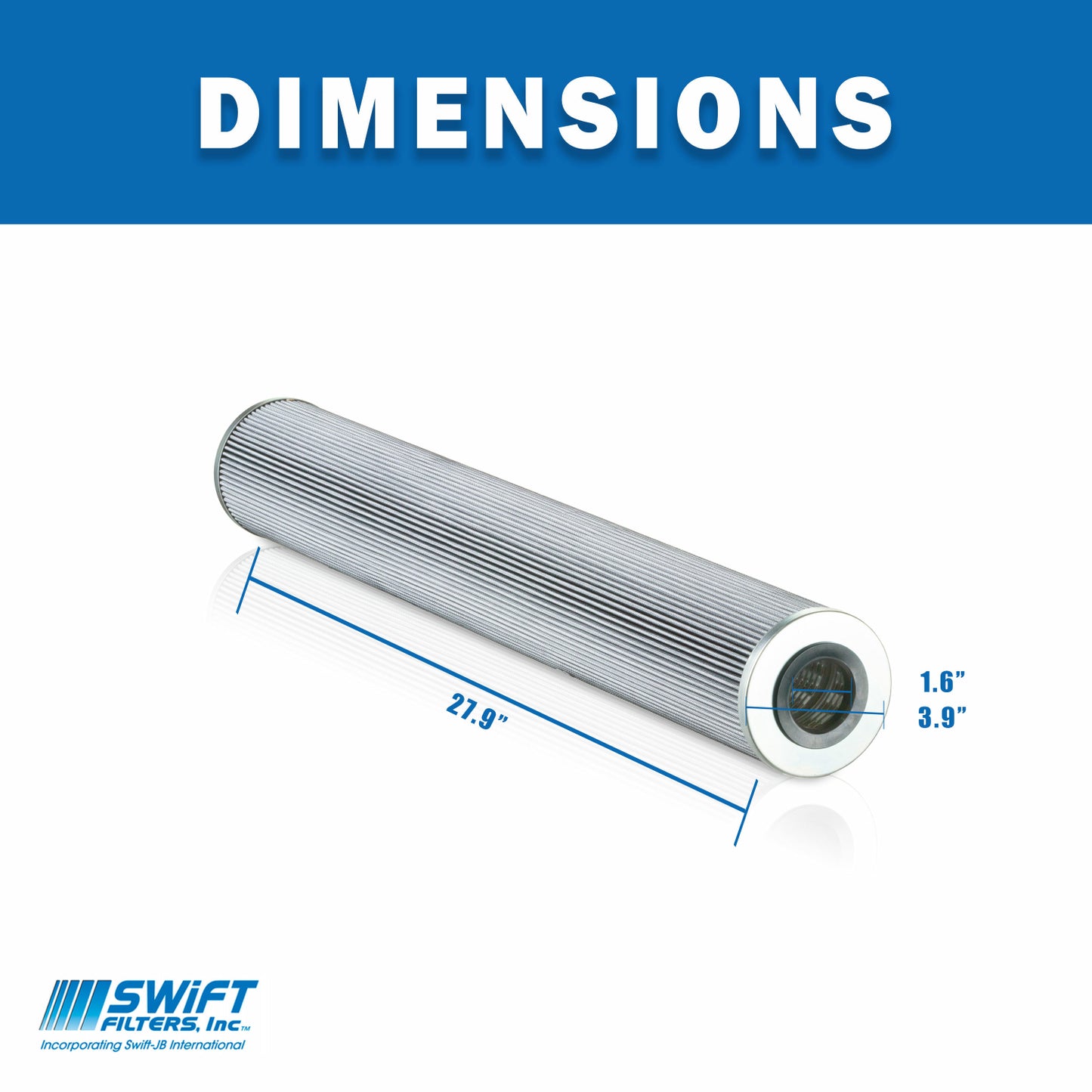

- DIMENSIONS: Inner Diameter 1.615 in., Outer Diameter 3.875 in., Overall Length 27.920 in.
![Cartridge Filter Element SF9700-27-25UM 25 Micron Microglass](http://www.swiftfilters.com/cdn/shop/products/f97de8da973601468102766e82cd75cd09301cd0-1500-1500_m_87192afd-cd83-4da5-a476-a0e6a3e82510.jpg?v=1677788924&width=1445)
![Cartridge Filter Element SF9700-27-25UM 25 Micron Microglass](http://www.swiftfilters.com/cdn/shop/products/8568ffa8f82da13db50ccff0d9f99e33479221ca-1500-1500_m_6bdadc61-02c6-4e60-aa6b-a464ae9510b2.jpg?v=1677788925&width=1445)
![Cartridge Filter Element SF9700-27-25UM 25 Micron Microglass](http://www.swiftfilters.com/cdn/shop/products/dc05724a38e3501acf8bc64a9322d9b67753eac9-1500-1500_m_126e6598-e60e-4308-86ab-8502bc5b66f8.jpg?v=1677788927&width=1445)
![Cartridge Filter Element SF9700-27-25UM 25 Micron Microglass](http://www.swiftfilters.com/cdn/shop/products/ddc7f73eceac0e596c600267e98c6f6b3acec8cf-1500-1500_m_6456369c-10c4-4150-8190-d5d68f02ac32.jpg?v=1677788928&width=1445)
![Cartridge Filter Element SF9700-27-25UM 25 Micron Microglass](http://www.swiftfilters.com/cdn/shop/products/8a83e20650cb5c6e83012bf94244b871e8f9ea91-1500-1500_m_15742176-0b1e-4a80-9b44-b7de9aaf0047.jpg?v=1677788930&width=1445)
Cartridge Filter Element SF9700-27-25UM 25 Micron Microglass
